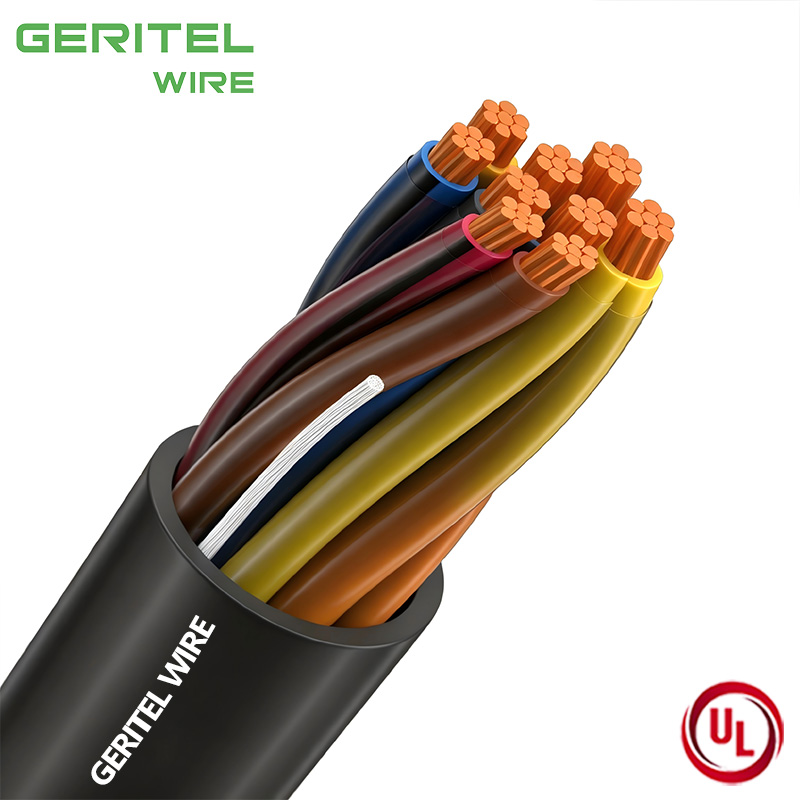

12 AWG Type TC-ER 600V Unshielded Tray Control Cable PVC Nylon

Name: 12 AWG Type TC-ER 600V Unshielded Tray Control Cable PVC Nylon
Brand: GERITEL

Shop premium unshielded 12 AWG TC-ER Control Cable. Durable 600 Volt TC-ER Cable with triple PVC/Nylon/PVC Cable jacket, ideal for industrial plant, mining, power and water treatment control wiring.

Conductor：

Copper Stranded Conductor

Insulation：

PVC

Jacket：

Nylon

Shield：

PVC

Rated Voltage：

600V

Temperature range：

90℃

Size range：

18AWG -10AWG

Standard：

UL 1277

Color：

Black

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

unshielded pvc nylon pvc 600v control type tc-er cable for sale

TSJ-N Cable

Conductor

Copper Stranded Conductor (filled or unfilled)

TSJ-N Cable

Insulation and Jacket

PVC Insulation & Nylon Jacket

TSJ-N Cable

Shield

PVC Shield

TSJ-N Cable

Temperature Rating

90°C

12 AWG Type TC-ER 600V Unshielded PVC Nylon PVC FOR Industrial Tray Wiring

This 12 AWG unshielded tray cable is a heavy-duty 12 AWG TC-ER Control Cable designed for industrial tray wiring and low-voltage machine control circuits. Rated for 600V working voltage, it is a standard 600 Volt TC-ER Cable built with a premium triple-layer PVC/Nylon/PVC Cable structure. As a professional unshielded pvc nylon pvc 600v control type tc-er cable, it delivers excellent tensile strength, abrasion resistance and oil resistance, ensuring flexible, safe and long-lasting control wiring for various industrial facilities.

pvc nylon pvc 600v tc-er control cable

TC-ER Control Cable

This industrial-grade 12 AWG TC-ER Control Cable is specially engineered for cable tray installation and equipment control wiring applications. Rated 600V, this 600 Volt TC-ER Cable adopts reinforced nylon sandwiched double PVC protection structure, which enhances tear resistance and stretching performance. The unshielded lightweight design allows easy bending and neat layout, while the reliable PVC/Nylon/PVC Cable insulation ensures stable signal and power control transmission. As a high-performance unshielded pvc nylon pvc 600v control type tc-er cable, it adapts to complex industrial environments with vibration, friction and humidity.

NM-B cable

Conductors：Copper Stranded

NM-B cable

Rated Voltage：600V

NM-B cable

Insulated：PVC

NM-B cable

Jacket：Nylon

NM-B CABLE

Standards：UL1277&UL83

NM-B WIRE

Temperature range：90℃

Advantages of CU TC-ER 600V 12 AWG UNShielded

This high-performance 12 AWG TC-ER Control Cable boasts unique application advantages compared with ordinary control wires. The optimized PVC/Nylon/PVC Cable triple-layer structure greatly enhances overall mechanical strength, effectively resisting tearing, abrasion and industrial chemical corrosion in complex workshop environments. As a versatile 600 Volt TC-ER Cable, its unshielded lightweight design reduces installation difficulty and construction costs, while maintaining stable 600V low-voltage operation safety. This qualified unshielded pvc nylon pvc 600v control type tc-er cable features strong environmental adaptability, long service life and low failure rate, delivering higher cost performance and operational stability for industrial tray wiring and equipment control systems.

unshielded pvc nylon pvc control cable for sale

Product Description

The PVC/Nylon/PVC (THHN/THWN-2), 600V Control, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Polyvinyl Chloride (PVC) and clear Nylon insulation, unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 through 10 AWG
Insulation	Polyvinyl Chloride (PVC) covered 14 AWG and larger are type THHN/THWN-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a circular cross section
Shield (optional)	Overall aluminum polyester (mylar) foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Conductor sizes 18 AWG – 16 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C PVC/NYLON PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY Conductor sizes 14 AWG – 10 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C THHN/THWN-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B8, ASTM B33 UL 83 UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 ANSI/NEMA WC 57/ICEA S-73-532 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.1)	40(56)
3	18	0.020(0.51)	0.045(1.14)	0.29(7.5)	50(69)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.0)	60(84)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.7)	70(99)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	85(126)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	110(158)
12	18	0.020(0.51)	0.045(1.14)	0.47(12.0)	135(199)
19	18	0.020(0.51)	0.045(1.14)	0.55(14.0)	205(298)
25	18	0.020(0.51)	0.045(1.14)	0.67(17.1)	280(414)
37	18	0.020(0.51)	0.045(1.14)	0.76(19.4)	390(573)
2	16	0.020(0.51)	0.045(1.14)	0.30(7.7)	50(69)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.1)	60(88)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.8)	75(109)
5	16	0.020(0.51)	0.045(1.14)	0.37(9.5)	90(130)
7	16	0.020(0.51)	0.045(1.14)	0.40(10.3)	115(168)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.0)	145(211)
12	16	0.020(0.51)	0.045(1.14)	0.52(13.3)	185(269)
16	16	0.020(0.51)	0.045(1.14)	0.61(15.6)	255(378)
19	16	0.020(0.51)	0.045(1.14)	0.64(18.9)	295(435)
25	16	0.020(0.51)	0.045(1.14)	0.75(18.9)	380(560)
30	16	0.020(0.51)	0.045(1.14)	0.79(20.0)	440(653)
37	16	0.020(0.51)	0.045(1.14)	0.85(21.5)	530(784)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	60(88)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.8)	80(115)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	100(143)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(172)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	155(226)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	195(285)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.5)	265(393)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.1)	400(591)
25	14	0.020(0.51)	0.060(1.52)	0.83(21.0)	515(763)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.2)	605(895)
37	14	0.020(0.51)	0.080(2.03)	0.98(25.0)	765(1,138)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	80(117)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(157)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	135(198)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.7)	165(240)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.7)	215(318)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.7)	290(431)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.4)	375(553)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.3)	565(840)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.8)	775(1,147)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.2)	905(1,344)
37	12	0.020(0.51)	0.080(2.03)	1.11(28.2)	1,090(1,622)
2	10	0.025(0.64)	0.045(1.14)	0.43(11.0)	115(169)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(231)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	200(295)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.8)	260(385)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.1)	345(511)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.9)	435(647)
12	10	0.025(0.64)	0.060(1.52)	0.83(21.0)	565(836)

Overall Shielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.2)	45(62)
3	18	0.020(0.51)	0.045(1.14)	0.30(7.5)	55(76)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.1)	65(91)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.8)	75(106)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	90(133)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	115(165)
12	18	0.020(0.51)	0.045(1.14)	0.48(12.1)	140(207)
19	18	0.020(0.51)	0.045(1.14)	0.56(14.1)	210(306)
25	18	0.020(0.51)	0.060(1.52)	0.68(17.2)	285(423)
37	18	0.020(0.51)	0.060(1.52)	0.77(19.5)	395(583)
2	16	0.020(0.51)	0.045(1.14)	0.31(7.8)	55(76)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.2)	65(95)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.9)	80(116)
5	16	0.020(0.51)	0.045(1.14)	0.38(9.6)	95(137)
7	16	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(175)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.1)	150(219)
12	16	0.020(0.51)	0.045(1.14)	0.53(13.4)	190(277)
16	16	0.020(0.51)	0.060(1.52)	0.62(15.7)	265(387)
19	16	0.020(0.51)	0.060(1.52)	0.65(16.4)	300(444)
25	16	0.020(0.51)	0.060(1.52)	0.75(19.0)	385(569)
30	16	0.020(0.51)	0.060(1.52)	0.79(20.1)	450(663)
37	16	0.020(0.51)	0.060(1.52)	0.85(21.6)	535(794)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	65(94)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.9)	85(121)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	105(150)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	125(179)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	160(232)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	200(292)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.4)	270(400)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.0)	405(597)
25	14	0.020(0.51)	0.060(1.52)	0.82(20.9)	520(770)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.0)	610(902)
37	14	0.020(0.51)	0.080(2.03)	0.98(24.8)	770(1,144)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	85(124)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(163)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	140(205)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.6)	170(246)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.6)	220(325)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.6)	295(438)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.3)	380(560)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.2)	570(846)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.6)	775(1,153)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.0)	910(1,350)
37	12	0.020(0.51)	0.080(2.03)	1.10(28.0)	1,095(1,627)
2	10	0.025(0.64)	0.045(1.14)	0.43(11.0)	120(176)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(238)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	205(302)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.7)	265(392)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.0)	350(517)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.8)	440(836)
12	10	0.025(0.64)	0.060(1.52)	0.82(20.9)	570(843)

Certification

Our 12 AWG TC-ER Control Cable passes rigorous industry qualification tests and complies with standard TC-ER tray cable specifications and North American electrical codes. As a certified 600 Volt TC-ER Cable, it undergoes strict inspection on insulation stability, voltage resistance, bending durability and mechanical tolerance. The premium PVC/Nylon/PVC Cable structure meets industrial environmental adaptability standards. Each batch of unshielded pvc nylon pvc 600v control type tc-er cable is fully verified and certified to guarantee safe and reliable operation in various industrial control wiring scenarios.

600v pvc nylon pvc tray cable specification

Heat-Resistant

Wear Resistance

Mechanical Strength

UL Certificated

600v pvc nylon pvc tray cable for sale

type tc-er pvc nylon pvc cable factory

APPLICATIONS

This durable 12 AWG TC-ER Control Cable is a versatile 600 Volt TC-ER Cable with sturdy PVC/Nylon/PVC Cable construction. As a reliable unshielded pvc nylon pvc 600v control type tc-er cable, it is widely applicable for various industrial low-voltage control and tray wiring scenarios, adapting to harsh working environments including dust, vibration, humidity and oil pollution to ensure stable equipment operation.

type tc-er pvc nylon pvc cable manufacturer

Industrial Plant

Perfect for general factory cable tray wiring, production line control circuits and workshop automation equipment connection. The wear-resistant triple-layer structure adapts long-term factory operation with dust and oil pollution.

12 awg tc-er control cable wholesale

Mining Facility

Suitable for mining auxiliary equipment control wiring and on-site signal transmission. Strong mechanical toughness and anti-vibration performance ensure stable circuit operation under harsh mining working conditions.

12 awg tc-er control cable price

Power Plant

Applied for power plant auxiliary system control loops, cabinet internal wiring and low-voltage signal collection. It provides safe and reliable wiring guarantee for daily power plant auxiliary equipment operation.

12 awg tc-er control cable manufacturer

Water Treatment Plant

Ideal for water pump control, automatic dosing system wiring and sewage treatment equipment circuits. Excellent moisture and corrosion resistance adapts to long-term humid water plant environment.

Customer Photos

We provide real product shots and industrial on-site wiring case photos of this TC-ER tray control cable. Authentic shooting materials clearly display cable structure, bending performance and actual laying effects for your project reference.

12 awg tc-er control cable specification

plant equipment

Our factory adopts full-automatic cable stranding, extrusion and integrated molding equipment. Equipped with professional precision testing instruments, we conduct full-process quality control from raw material selection to finished cable delivery to ensure stable product quality.

12 awg tc-er control cable bulk

12 awg tc-er control cable supplier

12 awg tc-er control cable for sale

12 awg tc-er control cable datasheet

12 awg tc-er control cable quote

12 awg tc-er control cable factory

Packaging Information

All cables adopt standard export-grade coiled packaging with waterproof, dustproof and shockproof protective wrapping. The professional packaging method avoids extrusion damage and moisture erosion during long-distance cross-border transportation.

12 awg tc-er control cable

Pallet Packaging

type tc-er pvc nylon pvc cable datasheet

Large Wooden Reel

600v pvc nylon pvc tray cable bulk

Large Wooden Reel

Global Certification

Our company owns a complete set of global authoritative electrical industry certifications and factory qualification accreditations. Mature standardized production systems and rich overseas project experience fully demonstrate our comprehensive manufacturing strength and product reliability.

600v pvc nylon pvc tray cable manufacturer

VDE

unshielded pvc nylon pvc control cable bulk

UL

pvc nylon pvc 600v tc-er control cable factory

SAA

Control Cable TC-ER

TUV

PVC/Nylon/PVC Cable

ISO

What are people saying about us

Global industrial equipment suppliers and engineering contractors highly recognize our stable cable performance, strict quality management and efficient one-stop export service. We always provide customized industrial wiring solutions for various automation and mechanical control projects.

unshielded pvc nylon pvc 600v control type tc-er cable datasheet

Luis Fernando Pérez - Venezuela - Office Building Project

The wires are of very good quality. The cables need to pass through long pipes and corners, and the cables are very flexible. We also ordered fire-resistant wires, which have been tested by a testing agency and found to be without problems.

pvc nylon pvc 600v tc-er control cable quote

Thomas Baker - USA - Factory construction

GERITEL WIRE's engineering team was very professional. They offered suggestions based on our cable requirements, and we found more suitable cable models. Subsequent operation has been stable without any problems.

unshielded pvc nylon pvc control cable

Ricardo José Herrera - Dominican - Hotel Project

Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.

frequently asked questions

If you have any questions, you can contact me at any time

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.

12 AWG Type TC-ER 600V Unshielded Tray Control Cable PVC Nylon

Conductor

Insulation and Jacket

Shield

Temperature Rating

Product Description

Applications

Features

Industrial Plant

Mining Facility

Power Plant

Water Treatment Plant

VDE

UL

SAA

TUV

ISO

Subscribe to our mailbox now
