12 AWG 600V Type TC-ER Shielded Control Cable PVC Nylon PVC

Name: 12 AWG 600V Type TC-ER Shielded Control Cable PVC Nylon PVC
Brand: GERITEL

UL1277 & UL83 certified 12 AWG shielded TC-ER tray cable with PVC/nylon insulation, overall shield, and PVC jacket. 600V. For factory automation and control systems.

Conductor：

Copper Stranded Conductor

Insulation：

PVC+Nylon

Jacket：

PVC

Shield：

Overall aluminum polyester

Rated Voltage：

600V

Temperature range：

90℃

Size range：

18AWG -10AWG

Standard：

UL 1277

Color：

Black

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

multi conductor shielded control cable specification

TSJ-N Cable

Conductor

Copper Stranded Conductor (filled or unfilled)

TSJ-N Cable

Insulation and Jacket

PVC+Nylon Insulation & PVC Jacket

TSJ-N Cable

Shield

Overall aluminum polyester

TSJ-N Cable

Temperature Rating

90°C

12 AWG Shielded TC-ER Control Cable – Versatile Shielded Control for Factory Automation and Instrumentation

This 12 AWG shielded TC-ER control cable is designed for versatile control and instrumentation applications in factory automation and industrial environments. Constructed with stranded bare copper conductors, PVC insulation with a nylon layer, an overall shield, and a rugged PVC jacket, this cable delivers reliable signal transmission and power delivery. UL1277 and UL83 certified with a 600V rating, it is Type TC-ER rated for exposed run installations in cable trays without conduit, simplifying installation in crowded industrial settings. The overall shield provides effective electromagnetic interference protection, ensuring signal integrity for sensitive control circuits. The 12 AWG size offers a practical balance of current capacity and flexibility, making it suitable for a wide range of control and instrumentation applications.

shielded twisted pair control cable for sale

TC-ER Control Cable

These shielded TC-ER control cables feature stranded bare copper conductors with PVC insulation covered by a nylon layer, an overall shield, and a durable PVC jacket. UL1277 and UL83 certified with a 600V rating, they are Type TC-ER rated for exposed run installations in cable trays without conduit. The PVC/nylon insulation provides excellent resistance to abrasion, oil, and moisture, while the overall shield protects against electromagnetic interference. These cables are ideal for factory automation, instrumentation control, sensor systems, and industrial equipment connections requiring reliable signal transmission in electrically noisy environments.

NM-B cable

Conductors：Copper Stranded

NM-B cable

Rated Voltage：600V

NM-B cable

Insulated：PVC+Nylon

NM-B cable

Jacket：PVC

NM-B CABLE

Standards：UL1277&UL83

NM-B WIRE

Temperature range：90℃

Advantages of 12 AWG Shielded TC-ER Tray Cable PVC Nylon PVC 600V

TThe overall shield protects against electromagnetic interference, ensuring stable signal transmission for sensitive control and instrumentation circuits. The 12 AWG size balances ampacity with manageable handling, making installation easier in crowded cable trays. The PVC/nylon insulation provides excellent resistance to abrasion, oil, and moisture, ensuring long-term reliability in industrial environments. The TC-ER rating eliminates the need for conduit, reducing installation labor and material costs while simplifying future modifications.

shielded twisted pair control cable manufacturer

Product Description

The PVC/Nylon/PVC (THHN/THWN-2), 600V Control, Type TC-ER and Direct Bural Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Polyvinyl Chloride (PVC) and clear Nylon insulation, unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Meets cold bend test at -25°C
Ripcord (as needed)
Excellent sunlight resistance

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 through 10 AWG
Insulation	Polyvinyl Chloride (PVC) covered 14 AWG and larger are type THHN/THWN-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a circular cross section
Shield (optional)	Overall aluminum polyester (mylar) foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Conductor sizes 18 AWG – 16 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C PVC/NYLON PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY Conductor sizes 14 AWG – 10 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C THHN/THWN-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B8, ASTM B33 UL 83 UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 ANSI/NEMA WC 57/ICEA S-73-532 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.1)	40(56)
3	18	0.020(0.51)	0.045(1.14)	0.29(7.5)	50(69)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.0)	60(84)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.7)	70(99)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	85(126)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	110(158)
12	18	0.020(0.51)	0.045(1.14)	0.47(12.0)	135(199)
19	18	0.020(0.51)	0.045(1.14)	0.55(14.0)	205(298)
25	18	0.020(0.51)	0.060(1.52)	0.67(17.1)	280(414)
37	18	0.020(0.51)	0.060(1.52)	0.76(19.4)	390(573)
2	16	0.020(0.51)	0.045(1.14)	0.30(7.7)	50(69)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.1)	60(88)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.8)	75(109)
5	16	0.020(0.51)	0.045(1.14)	0.37(9.5)	90(130)
7	16	0.020(0.51)	0.045(1.14)	0.40(10.3)	115(168)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.0)	145(211)
12	16	0.020(0.51)	0.045(1.14)	0.52(13.3)	185(269)
16	16	0.020(0.51)	0.060(1.52)	0.61(15.6)	255(378)
19	16	0.020(0.51)	0.060(1.52)	0.64(16.4)	295(435)
25	16	0.020(0.51)	0.060(1.52)	0.75(18.9)	380(560)
30	16	0.020(0.51)	0.060(1.52)	0.79(20.0)	440(653)
37	16	0.020(0.51)	0.060(1.52)	0.85(21.5)	530(784)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	60(88)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.8)	80(115)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	100(143)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(172)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	155(226)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	195(285)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.5)	265(393)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.1)	400(591)
25	14	0.020(0.51)	0.060(1.52)	0.83(21.0)	515(763)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.2)	605(895)
37	14	0.020(0.51)	0.080(2.03)	0.98(25.0)	765(1,138)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	80(117)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(157)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	135(198)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.7)	165(240)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.7)	215(318)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.7)	290(431)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.4)	375(553)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.3)	565(840)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.8)	775(1,147)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.2)	905(1,344)
37	12	0.020(0.51)	0.080(2.03)	1.11(28.2)	1,090(1,622)
2	10	0.025(0.64)	0.045(1.14)	0.43(11.0)	115(169)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(231)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	200(295)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.8)	260(385)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.1)	345(511)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.9)	435(647)
12	10	0.025(0.64)	0.060(1.52)	0.83(21.0)	565(836)

Overall Shielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.2)	45(62)
3	18	0.020(0.51)	0.045(1.14)	0.30(7.5)	55(76)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.1)	65(91)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.8)	75(106)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	90(133)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	115(165)
12	18	0.020(0.51)	0.045(1.14)	0.48(12.1)	140(207)
19	18	0.020(0.51)	0.045(1.14)	0.56(14.1)	210(306)
25	18	0.020(0.51)	0.060(1.52)	0.68(17.2)	285(423)
37	18	0.020(0.51)	0.060(1.52)	0.77(19.5)	395(583)
2	16	0.020(0.51)	0.045(1.14)	0.31(7.8)	55(76)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.2)	65(95)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.9)	80(116)
5	16	0.020(0.51)	0.045(1.14)	0.38(9.6)	95(137)
7	16	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(175)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.1)	150(219)
12	16	0.020(0.51)	0.045(1.14)	0.53(13.4)	190(277)
16	16	0.020(0.51)	0.060(1.52)	0.62(15.7)	265(387)
19	16	0.020(0.51)	0.060(1.52)	0.65(16.4)	300(444)
25	16	0.020(0.51)	0.060(1.52)	0.75(19.0)	385(569)
30	16	0.020(0.51)	0.060(1.52)	0.79(20.1)	450(663)
37	16	0.020(0.51)	0.060(1.52)	0.85(21.6)	535(794)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	65(94)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.9)	85(121)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	105(150)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	125(179)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	160(232)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	200(292)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.4)	270(400)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.0)	405(597)
25	14	0.020(0.51)	0.060(1.52)	0.82(20.9)	520(770)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.0)	610(902)
37	14	0.020(0.51)	0.080(2.03)	0.98(24.8)	770(1,144)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	85(124)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(163)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	140(205)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.6)	170(246)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.6)	220(325)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.6)	295(438)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.3)	380(560)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.2)	570(846)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.6)	775(1,153)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.0)	910(1,350)
37	12	0.020(0.51)	0.080(2.03)	1.10(28.0)	1,095(1,627)
2	10	0.025(0.64)	0.045(1.14)	0.43(11.0)	120(176)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(238)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	205(302)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.7)	265(392)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.0)	350(517)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.8)	440(836)
12	10	0.025(0.64)	0.060(1.52)	0.82(20.9)	570(843)

Certification

This 600V shielded Electrical Control Cable strictly complies with North American industrial electrical standards and TC-ER cable specification requirements. As qualified shielded pvc nylon pvc 600v control type tc-er cables and standard 600V TC-ER Cables, they have passed professional performance testing on insulation strength, voltage resistance, shielding effectiveness, bending durability and oil corrosion resistance, meeting the standard technical indicators for industrial low-voltage control wiring. As a professional pvc nylon pvc 600v tc-er control cable supplier, we ensure all product electrical parameters and structural performance are fully verified and qualified for commercial and industrial field engineering applications. Every finished cable undergoes rigorous sampling inspection to ensure consistent compliance with industry certification criteria and project access requirements.

aluminum foil shield tc-er cable wholesale

Heat-Resistant

Wear Resistance

Mechanical Strength

UL Certificated

overall braid shield control cable bulk

overall braid shield control cable datasheet

APPLICATIONS

This robust shielded electrical control cable features 600V rated voltage and durable PVC nylon composite sheath with an overall shield for enhanced EMI protection. The shielded flexible structure of these shielded pvc nylon pvc 600v control type tc-er cables makes installation simpler while protecting sensitive signals from electromagnetic interference. Supplied by professional pvc nylon pvc 600v tc-er control cable supplier, these standard 600V TC-ER Cables are widely used for automated production lines, mechanical equipment control circuits, industrial cabinet wiring, instrumentation systems, and low-voltage control system connections where signal integrity is critical.

overall foil shield control cable price

Industrial Plant

Suitable for general manufacturing factory workshop control wiring, production line signal transmission and workshop auxiliary equipment circuit connection. It resists daily dust, oil pollution and mechanical friction to ensure stable factory operation.

overall foil shield control cable manufacturer

Mining Facility

Applicable for mining site auxiliary equipment control and short-distance signal wiring. The sturdy anti-abrasion sheath adapts to harsh mining environments with frequent vibration and complex on-site conditions for safe control circuit operation.

overall shielded tc-er cable datasheet

Power Plant

Ideal for power plant low-voltage auxiliary control system wiring, equipment signal collection and cabinet internal control wiring. It provides stable and reliable circuit guarantee for daily power plant auxiliary operation.

shielded pvc jacket control cable wholesale

Water Treatment Plant

Perfect for water treatment equipment control wiring, pump unit signal connection and sewage plant automatic control system circuits. It features moisture and corrosion resistance, adapting to humid water plant working environments.

Customer Photos

We provide real product shooting pictures and on-site industrial wiring application cases. Authentic visual materials intuitively display cable texture, bending performance and actual wiring effects for customer project reference.

shielded pvc jacket control cable supplier

plant equipment

Our production workshop is equipped with professional cable extrusion equipment, precision stranding machines and finished product testing devices. Strict raw material screening and full-process quality monitoring ensure stable and uniform cable quality for every batch.

shielded xlpe pvc alternative control cable specification

shielded xlpe pvc alternative control cable

600v shielded tray cable manufacturer

shielded pvc nylon pvc tc-er control cable wholesale

shielded pvc nylon pvc tc-er control cable price

shielded pvc nylon pvc tc-er control cable datasheet

Packaging Information

Adopting standard export-grade coiled packaging with waterproof and dustproof outer wrapping. The exclusive packaging method effectively prevents friction damage and moisture erosion during long-distance transportation, ensuring intact product delivery.

shielded pvc nylon pvc tc-er control cable

Pallet Packaging

shielded pvc nylon pvc 600v control type tc-er cable quote

Large Wooden Reel

shielded pvc nylon pvc 600v control type tc-er cable

Large Wooden Reel

Global Certification

Our company holds a full set of global authoritative electrical industry certifications, covering mainstream qualification accreditations required for overseas cable engineering projects. Complete standardized certification systems fully demonstrate our professional manufacturing strength and product quality credibility, supporting smooth project acceptance and long-term global business cooperation.

Direct Burial Shielded Cable

VDE

Tray Rated Shielded Cable

UL

UL 1277 Shielded Cable

SAA

Shielded Control Tray Cable

TUV

UL 1277 Shielded Cable

ISO

What are people saying about us

Global industrial equipment suppliers and engineering customers recognize our stable cable performance, rigorous quality control and efficient supply service. We always provide targeted industrial control cable solutions for various automation wiring projects.

Shielded TC-ER Cable

Luis Fernando Pérez - Venezuela - Office Building Project

The wires are of very good quality. The cables need to pass through long pipes and corners, and the cables are very flexible. We also ordered fire-resistant wires, which have been tested by a testing agency and found to be without problems.

Shielded Type TC-ER Cable

Thomas Baker - USA - Factory construction

GERITEL WIRE's engineering team was very professional. They offered suggestions based on our cable requirements, and we found more suitable cable models. Subsequent operation has been stable without any problems.

Industrial Shielded Control Cable

Ricardo José Herrera - Dominican - Hotel Project

Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.

frequently asked questions

If you have any questions, you can contact me at any time

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.

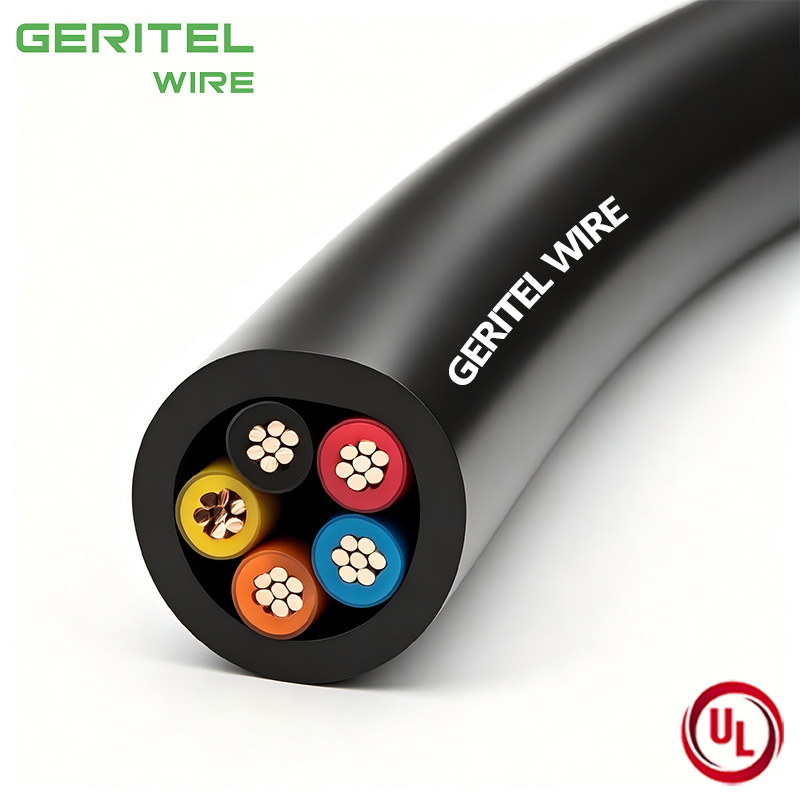

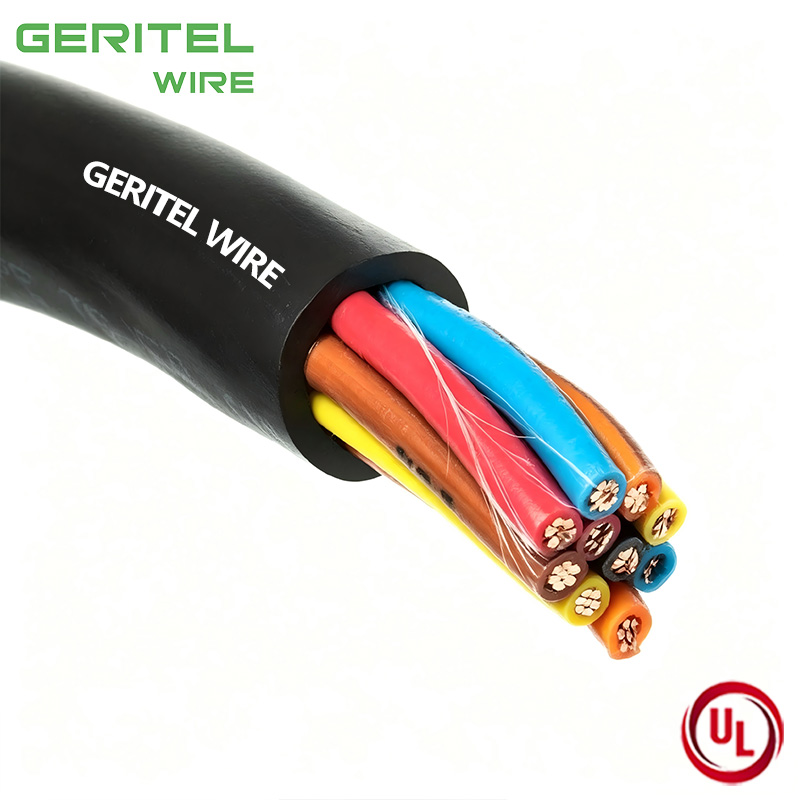

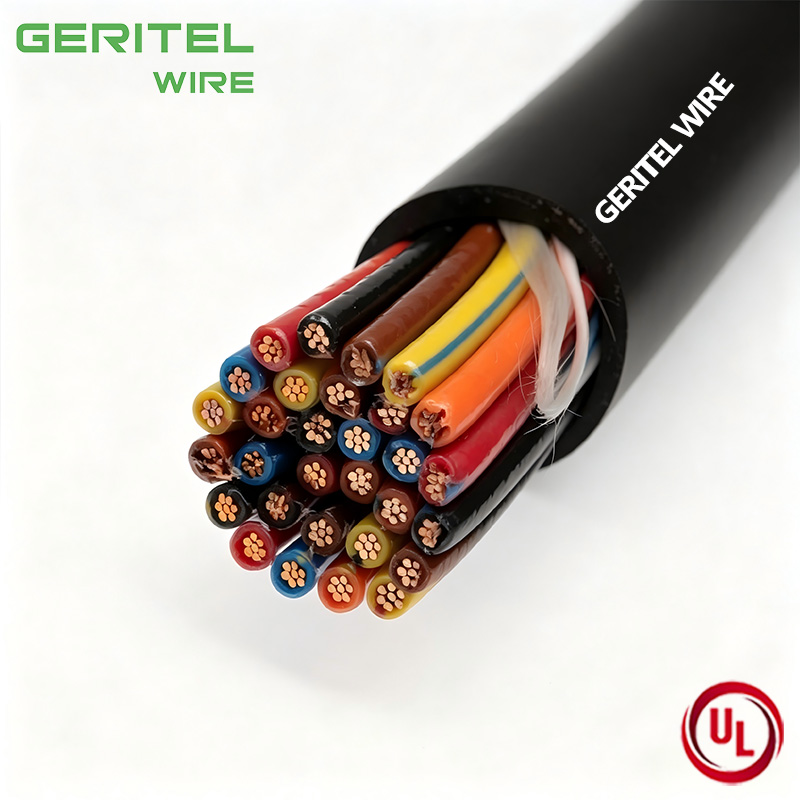

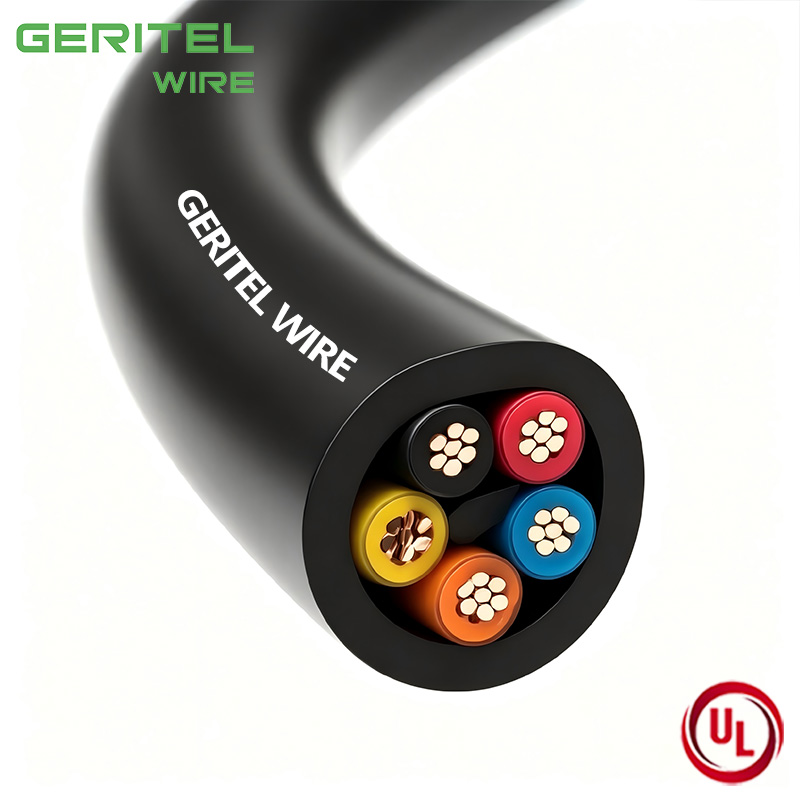

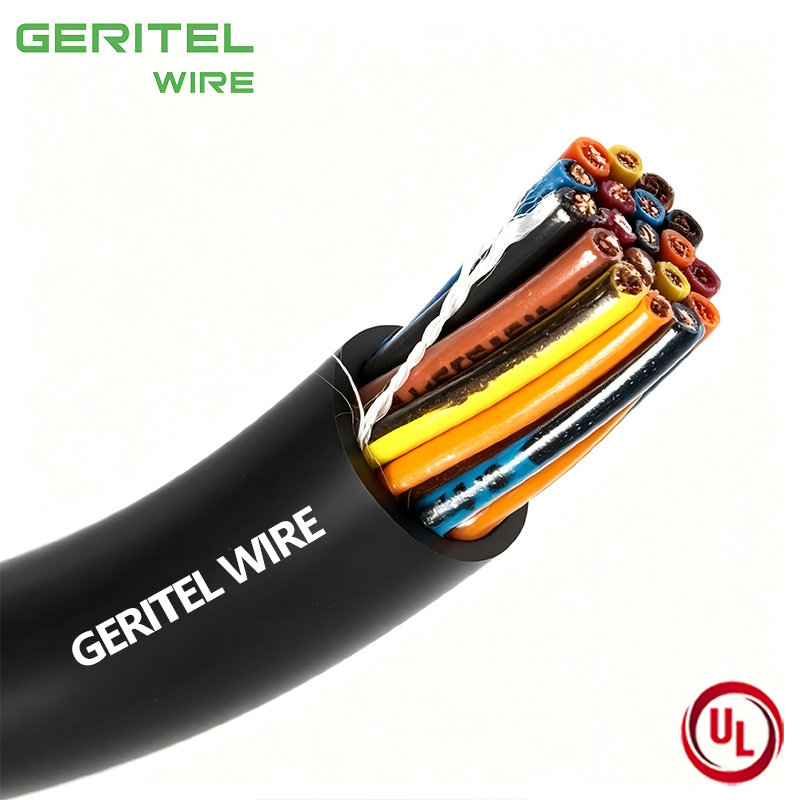

12 AWG 600V Type TC-ER Shielded Control Cable PVC Nylon PVC

Conductor

Insulation and Jacket

Shield

Temperature Rating

Product Description

Applications

Features

Industrial Plant

Mining Facility

Power Plant

Water Treatment Plant

VDE

UL

SAA

TUV

ISO

Subscribe to our mailbox now
