Type MC Cable with PVC Coating for Mechanical Rooms and Equipment Areas

1. Common Troubles Facing Cables in Mechanical & Equipment Zones

For electrical contractors, HVAC installers and mechanical equipment suppliers, mechanical rooms, HVAC equipment areas, industrial equipment bays and electrical distribution rooms are among the most challenging working environments for electrical wiring. These spaces feature dense pipelines, constant equipment vibration, accumulated oil stains and condensation, which turn ordinary cables into high-maintenance liabilities. Many project teams in South America have encountered the same four typical issues during daily construction and operation.

· Abrasion and Crushing from Dense Pipeline Layouts

Cables running alongside numerous pipes, ducts and mechanical components are constantly squeezed and collided. Uncoated cables easily suffer surface abrasion and structural damage in crowded layouts, raising hidden electrical risks.

· Premature Aging Caused by Oil, Condensation and Long-term Vibration

Running equipment generates continuous vibration, mixed with splashed oil and lingering condensation. These combined factors erode cable insulation and metal armor gradually, speeding up aging and leading to frequent circuit faults.

· Difficult Routing for Traditional Cables in Narrow Spaces

Traditional armored cables with rough surfaces create large friction during pulling and routing in cable trays. Installers spend extra time and labor to complete wiring, dragging down the whole project progress.

· Higher Costs from Separating Power and Signal Circuits

Power circuits, control lines and MC cable for signal circuits usually need separate laying. Using different cable types increases purchasing, sorting and installation costs, especially for large-scale industrial projects.

2. How PVC Coated Type MC Cable Fixes These On-site Challenges

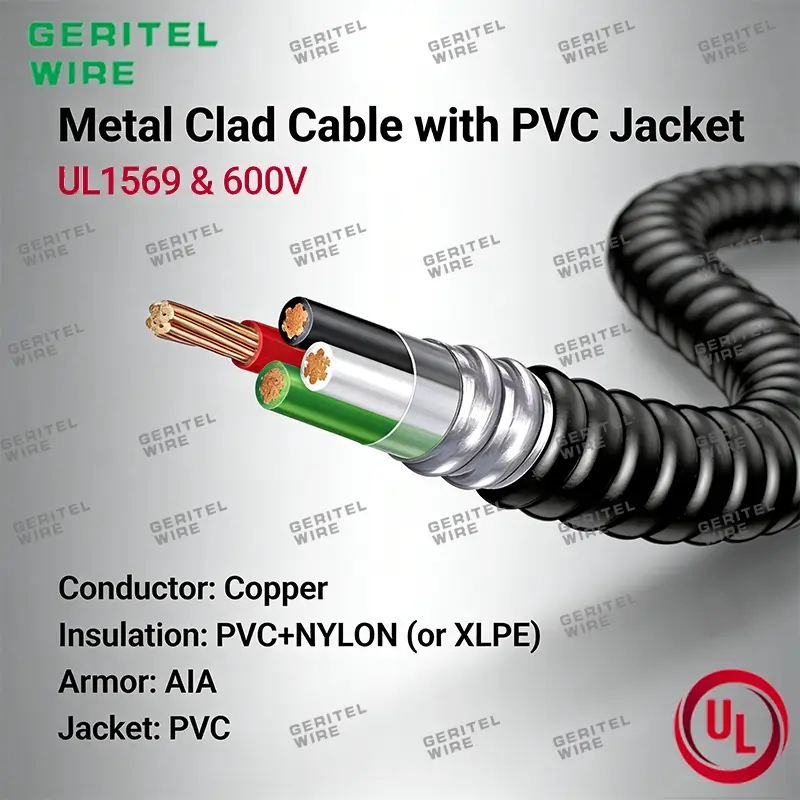

As a reliable choice of MC cable for cable tray, Type MC Cable with PVC coating is specially optimized for complex mechanical areas. It targets the above pain points and delivers stable performance for long-term operation.

· Smooth PVC Jacket Streamlines Cable Tray Installation

The outer PVC jacket forms a smooth and wear-resistant surface. It greatly reduces friction when cables are pulled through dense cable trays and narrow gaps, making routing much easier and cutting installation time effectively.

· Comprehensive Protection Against Oil, Moisture and Dust

The seamless PVC coating fully isolates internal components from oil stains, condensation and floating dust. It protects the inner aluminum interlocked armor and insulation layers from erosion, slowing down cable aging significantly in vibrating equipment areas. We also provide options with galvanized steel armor for scenarios requiring stronger mechanical performance.

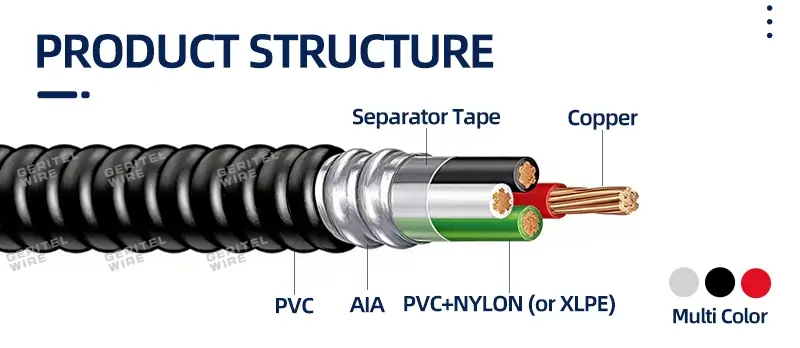

· Aluminum Interlocked Armor for Superior Mechanical Resistance

Built-in interlocked aluminum armor offers excellent anti-crush and anti-impact capability. It withstands accidental collision and long-term extrusion in busy mechanical rooms, delivering solid mechanical protection. This cable is also suitable for hazardous locations where additional mechanical protection is required, with reliable heat and moisture resistance.

· Integrated Solutions for Power, Control and Signal Circuits

This series covers power, control and signal circuits uniformly. You can use one cable family for different circuit demands, simplify material management and lower overall construction costs. It supports both bare ground and insulated green ground configurations to match diverse code requirements.

3. Practical Selection & NEC Compliance Guide for Cable Tray Use

Proper selection and standard installation are key to maximizing cable performance in mechanical rooms. Below is practical guidance for on-site engineers and buyers.

· Critical Reminder: Maintain Minimum Spacing to Prevent EMI

When laying MC cable for cable tray inside mechanical rooms, strictly follow NEC requirements. Keep standard minimum spacing between power cables and control or signal cables to avoid electromagnetic interference that affects normal circuit operation.

· Recommended Standard Models for Daily Projects

We provide complete specifications rated at 600V to fit different load demands:

· 1 AWG 3/C XHHW-2 PVC jacketed MC cable: Ideal for general power distribution and main control circuits in mechanical rooms.

· 1 AWG 4/C Type MC XHHW-2 AIA PVC 600V: Perfect for multi-channel control systems and combined signal circuits.

· 1 AWG 3/C Type MC XHHW-2 AIA PVC 600V: Widely used for HVAC equipment power supply and auxiliary circuits.

You can choose conductors insulated with THHN/THWN-2 or XHHW-2 according to ambient temperature and humidity. Both 3/C and 4/C designs meet most industrial wiring demands.

· Application of XHHW-2 PVC Jacketed MC Cable with 50 Percent Ground

The XHHW-2 PVC jacketed MC cable 50 percent ground is a popular option for industrial equipment and distribution rooms. Its optimized ground conductor design meets standard grounding rules for mechanical systems, and works stably under continuous vibration and temperature changes.

4. Product Quality & Global Certifications

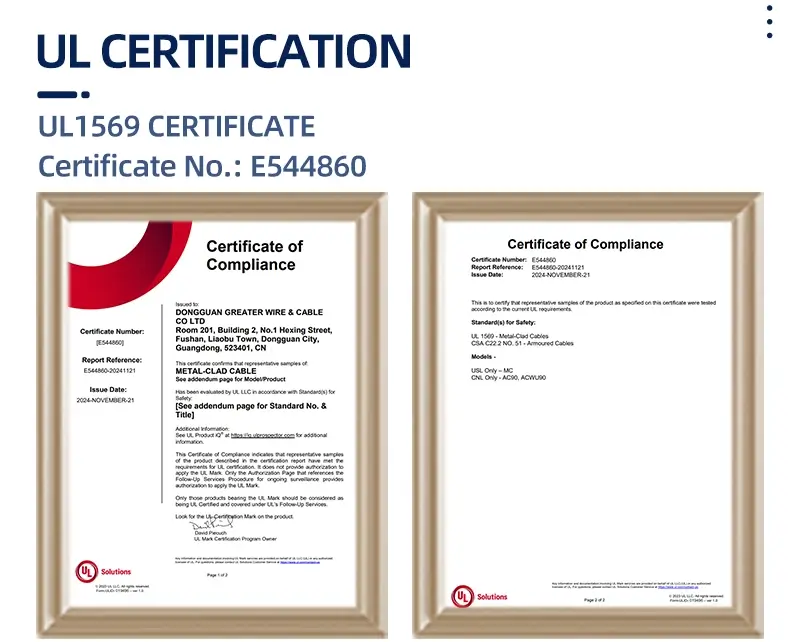

All our MC cables are UL certified under file number E544860, which can be verified on the official UL database. We also hold TUV, SAA, PSE, EU CPR, CE and ROHS certifications. With more than 30 years of production experience, every product undergoes strict testing to guarantee stable and reliable quality for global industrial projects.

5. FAQ

Q: Is PVC coated MC cable suitable for all cable tray installations in mechanical rooms?

A: Yes. Its smooth outer layer and flexible structure adapt well to most cable tray layouts in mechanical rooms, HVAC areas and equipment bays.

Q: Can this cable be used for both power lines and signal circuits?

A: Definitely. Our product line includes dedicated MC cable for signal circuits and general power models, supporting unified layout for multiple circuit types.

Q: How can I get detailed parameters and pricing?

A: Contact our team directly to get a fast PVC jacketed MC cable quote. Free product samples are also available for your testing.

6. Get Your PVC Jacketed MC Cable Quote Today

If you are working on projects for mechanical rooms, HVAC systems or industrial equipment areas across South America, our professional team can recommend the most suitable MC cable solutions for your needs. Reach out now for a quick quote, free samples and full technical support to move your project forward efficiently.
