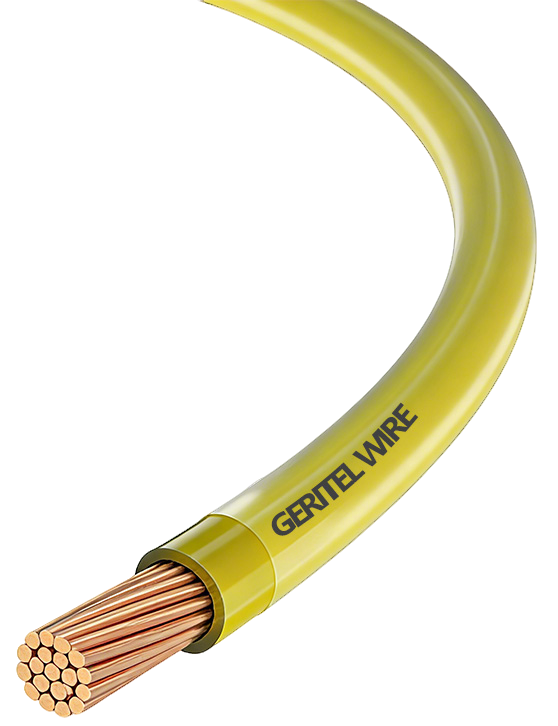

Light Commercial 2.6mm Copper THHN/THWN-2 Wire PVC+Nylon Insulated UL Listed

2.6mm stranded copper THHN/THWN-2 wire, UL certified, for light commercial branch and feeder circuit power distribution.

Conductor :

Pure Copper

Insulation:

PVC

Jacket:

Nylon

Rated Voltage:

600V

Standard:

UL83

share share share share share share

Description

Download

Copper THHN/THWN-2 Wire Philippines wet and dry locations

MC cable

  Conductor

Pure Copper

NM-B

Insulation and Sheath

 PVC & NYLON

No. of Conductor

single core

Temperature Rating

90°C(wet) & 90℃(dry)

2.6mm THHN/THWN-2 Copper Wire For Philippine Light Commercial Feeder & Branch Circuits

This 2.6mm stranded light commercial THHN wire Philippines adopts reinforced PVC nylon THHN wire Philippines insulation, providing stable performance for light commercial branch circuits and medium THHN wire for feeder circuit Philippines under Philippine electrical standards.

141	THHN wire Philippines manufacturer

THHN/THWN-2 Cable

THHN/THWN‑2 cables under the Philippines Standard are synonymous with quality and safety, backed by rigorous testing and compliance with international and local norms. They are the go‑to choice for engineers and contractors who demand performance and longevity in every installation.

NM-B cable

Copper  Conductors

NM-B cable

Rated Voltage Uo/U (Um) : 600V

NM-B cable

 Insulated &   Jacket:PVC &NYLON

NM-B cable

 Standards

UL83

NM-B WIRE

Temperature range

90°C (wet)

90℃ (dry)

Advantages of 2.6 mm² Copper THHN/THWN‑2 Wire

Flexible stranded copper design reduces installation difficulty while maintaining low electrical resistance. Double-layer insulation enhances anti-abrasion and anti-oil performance for long-term commercial use.

Copper THHN/THWN-2 Wire BPS Philippines

Size of Conductor No. & Nominal Diameter of Wire Wall
Thickness
Approxi
mate
Overall
Diameter
Minimum
Insulation
Resistance
Ampacity Cable Nominal Weight
MM Approxi
mate
AWG
MM MM MM M-Ohm-Km 70℃
Wet
90℃
Dry
KG/KM
Solid   PVC NYLON     THWN THHN

1.6

14 1x1.60 0.4 0.10 2.60 130 35 35 22.62
2.0 12

1x2.0

0.4 0.10 3.00 110 40 40 33.57
2.6 10 1x2.6 0.5 0.10 3.80 120 55 55 55.78
3.2 8

1x3.2

0.8 0.13 5.06 120 75 75 88.33
Stranded
2.0 14/7 7x0.60 0.4 0.10 2.80 130 30 35 23.51
3.5 12/7 7x0.80 0.4 0.10 3.40 110 35 40 39.12
5.5 10/7 7x1.00 0.5 0.10 4.20 120 50 55 60.56
8.0 8/7 7x1.20 0.8 0.13 5.46 120 65 75 91.95
14 6/7

7x1.60

0.8 0.13 6.66 100 95 105 151.77
22 4/7

7x2.0

1.0 0.15 8.30 100 130 140 236.65
30 2/7

7x2.30

1.0 0.15 9.20 100 160 170 306.50
38 1-19 19x1.60 1.3 0.18 10.96 100 185 195 409.82
50 1/0-19

19x1.80

1.3 0.18 11.96 100 220 235 509.05
60 2/0-19 19x2.00 1.3 0.18 12.96 80 250 260 618.96
80 3/0-19 19x2.30 1.3 0.18 14.46 80 300 320 804.44
100 4/0-19 19x2.60 1.3 0.18 15.96 80 355 370 1013.94
125 250MCM 37x2.10 1.6 0.18 18.26 80 400 420 1286.37
150 300MCM 37x2.30 1.6 0.20 19.70 80 440 475 1542.02
  350MCM 37x2.47 1.6 0.20 20.90 80 505 570 1783.07
200 400MCM

37x2.60

1.6 0.20 21.80 60 540 570 1946.72
  500MCM 37x2.95 1.6 0.20 24.25 60 620 655 2486.02
250 500MCM 61x2.30 1.6 0.20 24.30 60 620 655 2437.34
  600MCM 61x2.52 1.8 0.23 26.76 60 690 715 2995.93
325 650MCM 61x2.60 1.8 0.23 27.46 60 720 770 3191.58
  750MCM 61x2.82 1.8 0.23 29.36 60 785 845 3719.63
400 800MCM 61x2.90 1.8 0.23 30.16 60 810 875 3927.55
500 1000MCM 61x3.20 1.8 0.23 32.86 60 930 995 4750.91


Certification



UL 83 certified and fully compliant with Philippine commercial wiring regulations for electrical permit approval.



Copper THHN/THWN-2 Wire safety standard Philippines

Environmental Resistance

EMI Shielding Performance

Flame Retardant Performance

UL Certificated

Copper THHN/THWN-2 Wire BPS approved wire Philippines

THHN Wire for Philippine import clearance

APPLICATIONS

Cable Tray & Raceway Systems, Conduit Wiring, Service Entrance Wiring, Branch Circuit Wiring, Underground Conduit Installation. This wire fits all common indoor and buried power distribution layouts.

Copper THHN/THWN-2 Wire Philippine standard

Feeder Circuit Wiring

Supports medium light feeder runs connecting main panels to floor subpanels in small commercial buildings.

THHN Wire with UL 83 certificate

Conduit Wiring

Flexible structure suits long-distance multi-bend conduit pulling for commercial concealed wiring.



Copper THHN/THWN-2 Wire Philippines for humid environment

Cable Tray & Raceway Systems

Stable thermal performance when bundled in commercial cable trays for daily power distribution.



THWN-2 wire Philippines 600V

Branch Circuit Wiring

Designed for shop lighting, air-conditioning and socket branch circuits.

Customer Photos

Customer photos show commercial tray wiring, concealed conduit projects, building feeder circuit installation and bulk wire shipments to Philippine local warehouses.

THWN-2 Wire ICC certificate Philippines

plant equipment

Applicable for small assembly machines and control panel wiring in light manufacturing plants.

THWN-2 Wire for Philippine import clearance



THWN-2 Wire certified supplier Philippines



THWN-2 Wire BPS approved wire Philippines



Copper Building Wire ICC certification Philippines

Copper Building Wire UL 83 certification

Copper Building Wire ICC mark wire Philippines

Packaging Information

Standard 500 FT spool packing, export carton packaging, customized packaging available for wholesale distributors.

Thermoplastic Insulated Wire ICC certification Philippines



Plastic Reel

Thermoplastic Insulated Wire DTI BPS certification



Small Wooden Reel

Thermoplastic Insulated Wire UL listed Philippines



Large Wooden Reel

Global Certification

UL 83 global certification meets Philippine local inspection requirements for commercial building electrical permits.
