Home Products Philippines Cable THHN
THHN wire Philippines dry location wire
THHN wire Philippines service entrance conduit
UL 83 copper building wire 600 volt
THHN wire Philippines moisture resistant 600V
THHN wire Philippines dry location wire
THHN wire Philippines service entrance conduit
UL 83 copper building wire 600 volt
THHN wire Philippines moisture resistant 600V

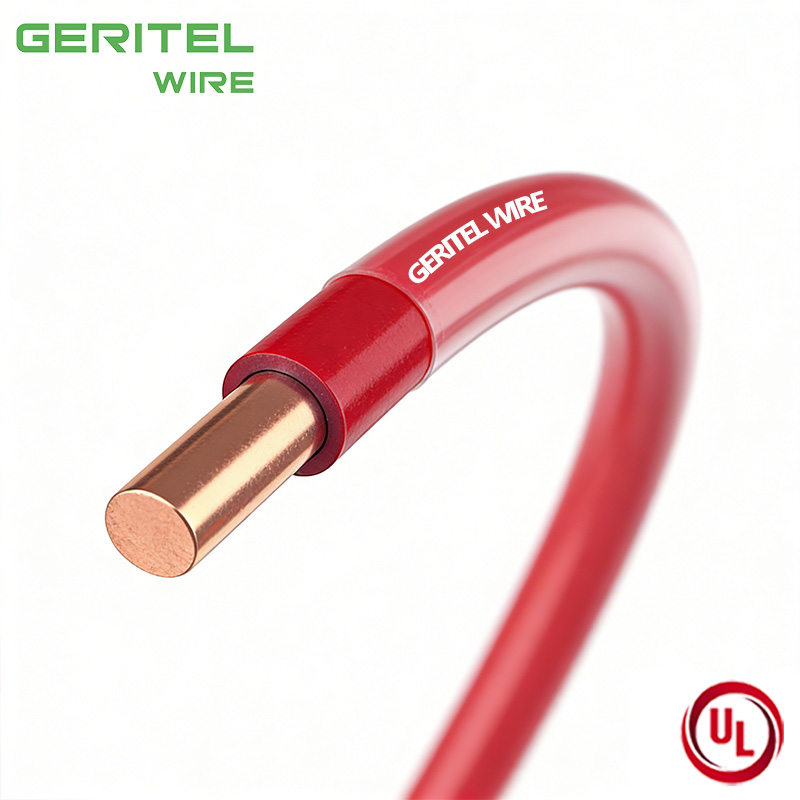

Small Commercial 3.2mm Copper THHN/THWN-2 Wire Dual Wet/Dry Rated UL 83

3.2mm THHN/THWN-2 copper building wire for medium commercial branch and feeder circuit power distribution in the Philippines.

Conductor :

Pure Copper

Insulation:

PVC

Jacket:

Nylon

Rated Voltage:

600V

Standard:

UL83

share share share share share share

Description

Download

UL 83 THHN wire Philippines factory price

MC cable

  Conductor

Pure Copper

NM-B

Insulation and Sheath

 PVC & NYLON

No. of Conductor

single core

Temperature Rating

90°C(wet) & 90℃(dry)

3.2mm Dual-Rated THHN/THWN-2 Wire For Philippine Medium Feeder & Commercial Power Runs

3.2mm high-performance UL 83 THHN wire Philippines delivers enhanced load capacity for medium branch circuits and building feeder wiring. As a premium thermoplastic insulated wire Philippines, it is widely used for reliable THHN wire for conduit wiring Philippines, fully complying with Philippine construction electrical codes.

copper building wire Philippines manufacturer

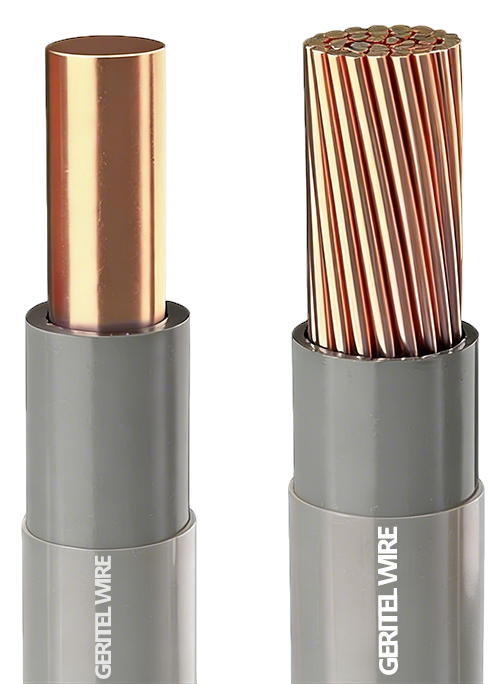

THHN/THWN-2 Cable

THHN/THWN‑2 cables under the Philippines Standard are synonymous with quality and safety, backed by rigorous testing and compliance with international and local norms. They are the go‑to choice for engineers and contractors who demand performance and longevity in every installation.

NM-B cable

Copper  Conductors

NM-B cable

Rated Voltage Uo/U (Um) : 600V

NM-B cable

 Insulated &   Jacket:PVC &NYLON

NM-B cable

 Standards

UL83

NM-B WIRE

Temperature range

90°C (wet)

90℃ (dry)

Advantages of 3.2 mm² Copper THHN/THWN‑2 Wire

Larger copper cross-section supports higher continuous current loads. Reinforced insulation prevents moisture ingress and thermal aging in enclosed installation environments.

copper building wire Philippines wholesale supplier

Size of Conductor No. & Nominal Diameter of Wire Wall
Thickness
Approxi
mate
Overall
Diameter
Minimum
Insulation
Resistance
Ampacity Cable Nominal Weight
MM Approxi
mate
AWG
MM MM MM M-Ohm-Km 70℃
Wet
90℃
Dry
KG/KM
Solid   PVC NYLON     THWN THHN

1.6

14 1x1.60 0.4 0.10 2.60 130 35 35 22.62
2.0 12

1x2.0

0.4 0.10 3.00 110 40 40 33.57
2.6 10 1x2.6 0.5 0.10 3.80 120 55 55 55.78
3.2 8

1x3.2

0.8 0.13 5.06 120 75 75 88.33
Stranded
2.0 14/7 7x0.60 0.4 0.10 2.80 130 30 35 23.51
3.5 12/7 7x0.80 0.4 0.10 3.40 110 35 40 39.12
5.5 10/7 7x1.00 0.5 0.10 4.20 120 50 55 60.56
8.0 8/7 7x1.20 0.8 0.13 5.46 120 65 75 91.95
14 6/7

7x1.60

0.8 0.13 6.66 100 95 105 151.77
22 4/7

7x2.0

1.0 0.15 8.30 100 130 140 236.65
30 2/7

7x2.30

1.0 0.15 9.20 100 160 170 306.50
38 1-19 19x1.60 1.3 0.18 10.96 100 185 195 409.82
50 1/0-19

19x1.80

1.3 0.18 11.96 100 220 235 509.05
60 2/0-19 19x2.00 1.3 0.18 12.96 80 250 260 618.96
80 3/0-19 19x2.30 1.3 0.18 14.46 80 300 320 804.44
100 4/0-19 19x2.60 1.3 0.18 15.96 80 355 370 1013.94
125 250MCM 37x2.10 1.6 0.18 18.26 80 400 420 1286.37
150 300MCM 37x2.30 1.6 0.20 19.70 80 440 475 1542.02
  350MCM 37x2.47 1.6 0.20 20.90 80 505 570 1783.07
200 400MCM

37x2.60

1.6 0.20 21.80 60 540 570 1946.72
  500MCM 37x2.95 1.6 0.20 24.25 60 620 655 2486.02
250 500MCM 61x2.30 1.6 0.20 24.30 60 620 655 2437.34
  600MCM 61x2.52 1.8 0.23 26.76 60 690 715 2995.93
325 650MCM 61x2.60 1.8 0.23 27.46 60 720 770 3191.58
  750MCM 61x2.82 1.8 0.23 29.36 60 785 845 3719.63
400 800MCM 61x2.90 1.8 0.23 30.16 60 810 875 3927.55
500 1000MCM 61x3.20 1.8 0.23 32.86 60 930 995 4750.91


Certification



UL 83 certified and BPS-compliant for Philippine commercial and light industrial electrical permit approval.



UL 83 THHN wire Philippines cost

Environmental Resistance

EMI Shielding Performance

Flame Retardant Performance

UL Certificated

copper building wire Philippines bulk price

copper building wire Philippines custom manufacturer

APPLICATIONS

Cable Tray & Raceway Systems, Conduit Wiring, Service Entrance Wiring, Branch Circuit Wiring, Underground Conduit Installation. This wire fits all common indoor and buried power distribution layouts.

copper building wire Philippines order

Feeder Circuit Wiring

Ideal for medium building feeder circuits distributing power from main panels to multiple subpanels.

600V THHN wire Philippines wholesale supplier

Conduit Wiring

Durable scratch-resistant jacket ensures safe pulling through long embedded conduit systems.



600V THHN wire Philippines custom manufacturer

Cable Tray & Raceway Systems

Excellent thermal stability for medium-load bundled tray wiring in commercial and workshop buildings.



600V THHN wire Philippines MOQ

Branch Circuit Wiring

Used for heavy-duty indoor branch circuits for shops, offices and workshops.

Customer Photos

Real-site photos include commercial tray distribution, underground conduit projects, building feeder wiring and factory equipment power installation in Philippine projects.

Copper THHN/THWN-2 Wire Philippines PVC insulation

plant equipment

Perfect for compressors, small production machinery and auxiliary industrial equipment wiring.

Copper THHN/THWN-2 Wire Philippines sunlight resistant



Copper THHN/THWN-2 Wire Philippines color coded



THHN/THWN-2 copper wire solid copper conductor



THHN/THWN-2 copper wire gasoline and oil resistant

THHN/THWN-2 copper wire RoHS compliant

UL 83 THHN wire nylon jacket

Packaging Information

Standard 500 FT spool export packing, customizable length and printing for bulk distributor orders.

UL 83 THHN wire color coded



Plastic Reel

Philippines THHN wire PVC insulation



Small Wooden Reel

Philippines THHN wire RoHS compliant



Large Wooden Reel

Global Certification

UL 83 international certification together with Philippine local standard approval ensures smooth project inspection and permit passing.

Copper THHN/THWN-2 Wire Philippines dry location wire

VDE

Copper THHN/THWN-2 Wire Philippines branch circuit 600V

UL

Copper THHN/THWN-2 Wire Philippines for rainy season projects

SAA

Copper THHN/THWN-2 Wire Philippines heat resistant 600V

TUV

THWN-2 wire Philippines wet and dry locations

ISO

What are people saying about us

Local Philippine contractors confirm this 3.2mm wire offers stable load capacity, perfect sizing and excellent onsite installation performance.

THWN-2 wire Philippines 90 degree insulation

Luis Fernando Pérez - Venezuela - Office Building Project

The wires are of very good quality. The cables need to pass through long pipes and corners, and the cables are very flexible. We also ordered fire-resistant wires, which have been tested by a testing agency and found to be without problems.

THHN wire Philippines 90C dry locations

Thomas Baker - USA - Factory construction

GERITEL WIRE's engineering team was very professional. They offered suggestions based on our cable requirements, and we found more suitable cable models. Subsequent operation has been stable without any problems.

THWN-2 wire Philippines price

Ricardo José Herrera - Dominican - Hotel Project

Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.

frequently asked questions

If you have any questions, you can contact me at any time
Q

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.
Q

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.
Q

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.
Q

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.
Q

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.
Q

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.
Q

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!
Q

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!
Q

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.
Q

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.
Q

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.
Q

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.
