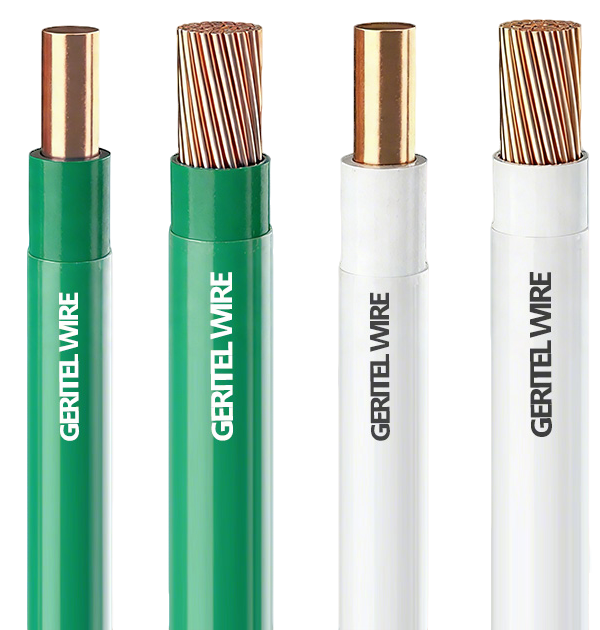

Factory & Commercial 3.5mm Copper THHN/THWN-2 Wire UL & Philippine Permit Certified
Conductor :
Pure Copper
Insulation:
PVC
Jacket:
Nylon
Rated Voltage:
600V
Standard:
UL83
Description
Download


Conductor
Pure Copper

Insulation and Sheath
PVC & NYLON

No. of Conductor
single core

Temperature Rating
90°C(wet) & 90℃(dry)
3.5mm THHN/THWN-2 Copper Wire For Commercial Main Branch & Feeder Circuit Wiring
3.5mm stranded copper building wire Philippines provides upgraded load capacity for commercial main branches and building feeder circuits. This BPS approved THHN wire Philippines with reinforced PVC+Nylon insulation is optimized for THHN wire for service entrance wiring, ensuring durability for factory and commercial Philippine construction projects.

THHN/THWN-2 Cable
THHN/THWN‑2 cables under the Philippines Standard are synonymous with quality and safety, backed by rigorous testing and compliance with international and local norms. They are the go‑to choice for engineers and contractors who demand performance and longevity in every installation.

Copper Conductors

Rated Voltage Uo/U (Um) : 600V

Insulated & Jacket:PVC &NYLON

Standards
UL83

Temperature range
90°C (wet)
90℃ (dry)
Advantages of 3.5 mm² Copper THHN/THWN‑2 Wire
High-conductivity stranded copper minimizes voltage drop on long feeder runs. Double-layer insulation resists friction, heat and moisture for long-term commercial and industrial service.

| Size of Conductor | No. & Nominal Diameter of Wire | Wall Thickness |
Approxi mate Overall Diameter |
Minimum Insulation Resistance |
Ampacity | Cable Nominal Weight | |||
| MM | Approxi mate AWG |
MM | MM | MM | M-Ohm-Km | 70℃ Wet |
90℃ Dry |
KG/KM | |
| Solid | PVC | NYLON | THWN | THHN | |||||
|
1.6 |
14 | 1x1.60 | 0.4 | 0.10 | 2.60 | 130 | 35 | 35 | 22.62 |
| 2.0 | 12 |
1x2.0 |
0.4 | 0.10 | 3.00 | 110 | 40 | 40 | 33.57 |
| 2.6 | 10 | 1x2.6 | 0.5 | 0.10 | 3.80 | 120 | 55 | 55 | 55.78 |
| 3.2 | 8 |
1x3.2 |
0.8 | 0.13 | 5.06 | 120 | 75 | 75 | 88.33 |
| Stranded | |||||||||
| 2.0 | 14/7 | 7x0.60 | 0.4 | 0.10 | 2.80 | 130 | 30 | 35 | 23.51 |
| 3.5 | 12/7 | 7x0.80 | 0.4 | 0.10 | 3.40 | 110 | 35 | 40 | 39.12 |
| 5.5 | 10/7 | 7x1.00 | 0.5 | 0.10 | 4.20 | 120 | 50 | 55 | 60.56 |
| 8.0 | 8/7 | 7x1.20 | 0.8 | 0.13 | 5.46 | 120 | 65 | 75 | 91.95 |
| 14 | 6/7 |
7x1.60 |
0.8 | 0.13 | 6.66 | 100 | 95 | 105 | 151.77 |
| 22 | 4/7 |
7x2.0 |
1.0 | 0.15 | 8.30 | 100 | 130 | 140 | 236.65 |
| 30 | 2/7 |
7x2.30 |
1.0 | 0.15 | 9.20 | 100 | 160 | 170 | 306.50 |
| 38 | 1-19 | 19x1.60 | 1.3 | 0.18 | 10.96 | 100 | 185 | 195 | 409.82 |
| 50 | 1/0-19 |
19x1.80 |
1.3 | 0.18 | 11.96 | 100 | 220 | 235 | 509.05 |
| 60 | 2/0-19 | 19x2.00 | 1.3 | 0.18 | 12.96 | 80 | 250 | 260 | 618.96 |
| 80 | 3/0-19 | 19x2.30 | 1.3 | 0.18 | 14.46 | 80 | 300 | 320 | 804.44 |
| 100 | 4/0-19 | 19x2.60 | 1.3 | 0.18 | 15.96 | 80 | 355 | 370 | 1013.94 |
| 125 | 250MCM | 37x2.10 | 1.6 | 0.18 | 18.26 | 80 | 400 | 420 | 1286.37 |
| 150 | 300MCM | 37x2.30 | 1.6 | 0.20 | 19.70 | 80 | 440 | 475 | 1542.02 |
| 350MCM | 37x2.47 | 1.6 | 0.20 | 20.90 | 80 | 505 | 570 | 1783.07 | |
| 200 | 400MCM |
37x2.60 |
1.6 | 0.20 | 21.80 | 60 | 540 | 570 | 1946.72 |
| 500MCM | 37x2.95 | 1.6 | 0.20 | 24.25 | 60 | 620 | 655 | 2486.02 | |
| 250 | 500MCM | 61x2.30 | 1.6 | 0.20 | 24.30 | 60 | 620 | 655 | 2437.34 |
| 600MCM | 61x2.52 | 1.8 | 0.23 | 26.76 | 60 | 690 | 715 | 2995.93 | |
| 325 | 650MCM | 61x2.60 | 1.8 | 0.23 | 27.46 | 60 | 720 | 770 | 3191.58 |
| 750MCM | 61x2.82 | 1.8 | 0.23 | 29.36 | 60 | 785 | 845 | 3719.63 | |
| 400 | 800MCM | 61x2.90 | 1.8 | 0.23 | 30.16 | 60 | 810 | 875 | 3927.55 |
| 500 | 1000MCM | 61x3.20 | 1.8 | 0.23 | 32.86 | 60 | 930 | 995 | 4750.91 |
Certification
UL 83 certified and BPS-compliant for Philippine commercial and light industrial electrical permit approval.

Environmental Resistance
EMI Shielding Performance
Flame Retardant Performance
UL Certificated


APPLICATIONS
Cable Tray & Raceway Systems, Conduit Wiring, Service Entrance Wiring, Branch Circuit Wiring, Underground Conduit Installation. This wire fits all common indoor and buried power distribution layouts.

Feeder Circuit Wiring
Core choice for multi-story building feeder circuits distributing power to floor-level subpanels.

Conduit Wiring
Tough insulation withstands friction during long vertical riser and multi-bend conduit installation.

Cable Tray & Raceway Systems
Stable performance under medium continuous loads in factory and commercial cable tray trunk systems.

Underground Conduit Installation
Wet-location rating ensures safe operation in damp buried conduit systems.
Customer Photos
Customer gallery includes factory tray wiring, vertical conduit risers, multi-story feeder circuit installation and bulk export spool shipments to Manila.

plant equipment
Perfect for CNC equipment, pumps and medium-power workshop production machinery.






Packaging Information
Standard 500 FT spool packing, heavy-duty export cartons, customizable for large-volume orders.

Plastic Reel

Small Wooden Reel

Large Wooden Reel
Global Certification
UL 83 global certification + Philippine local compliance guarantees full documentation for project acceptance.
