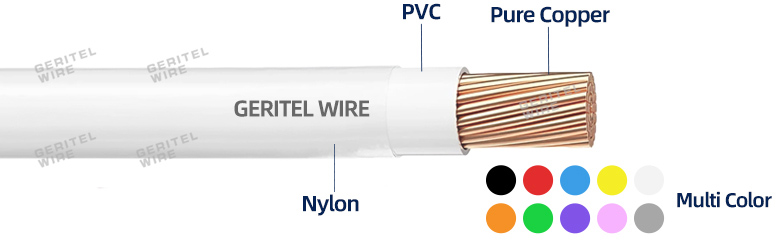

Medium Industrial 5.5mm Copper THHN/THWN-2 Wire Heat & Moisture Stabilized
Conductor :
Pure Copper
Insulation:
PVC
Jacket:
Nylon
Rated Voltage:
600V
Standard:
UL83
Description
Download


Conductor
Pure Copper

Insulation and Sheath
PVC & NYLON

No. of Conductor
single core

Temperature Rating
90°C(wet) & 90℃(dry)

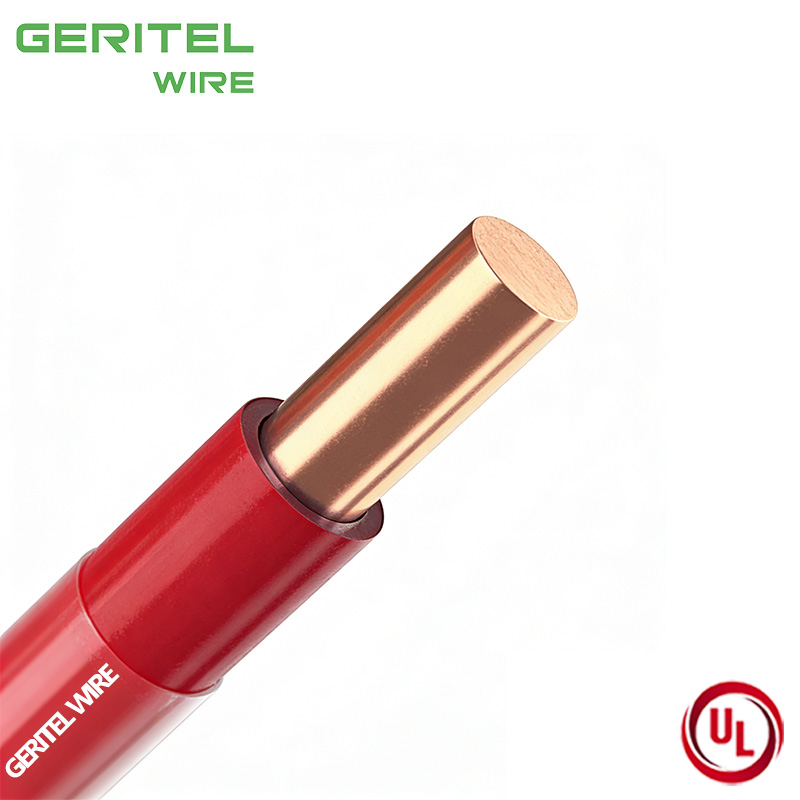

5.5mm THHN/THWN-2 Copper Wire For Industrial Feeder Trunk & Heavy Branch Wiring
5.5mm heavy-duty stranded industrial THHN wire Philippines is engineered for medium industrial trunk lines, heavy branch circuits and building feeder wiring. Featuring heat resistant THHN/THWN-2 wire performance, it is the ideal THHN wire for plant equipment wiring, with heat and moisture stabilized insulation meeting Philippine industrial electrical standards.

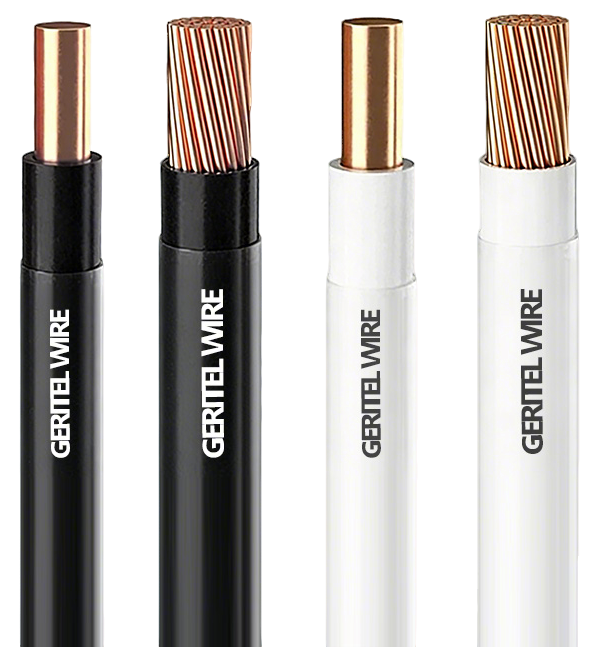

THHN/THWN-2 Cable
THHN/THWN‑2 cables under the Philippines Standard are synonymous with quality and safety, backed by rigorous testing and compliance with international and local norms. They are the go‑to choice for engineers and contractors who demand performance and longevity in every installation.

Copper Conductors

Rated Voltage Uo/U (Um) : 600V

Insulated & Jacket:PVC &NYLON

Standards
UL83

Temperature range
90°C (wet)
90℃ (dry)
Advantages of 5.5 mm² Copper THHN/THWN‑2 Wire
Thick stranded copper core supports sustained heavy loads without overheating. Reinforced insulation resists industrial heat, moisture and minor chemical contamination for long factory service life.

| Size of Conductor | No. & Nominal Diameter of Wire | Wall Thickness |
Approxi mate Overall Diameter |
Minimum Insulation Resistance |
Ampacity | Cable Nominal Weight | |||
| MM | Approxi mate AWG |
MM | MM | MM | M-Ohm-Km | 70℃ Wet |
90℃ Dry |
KG/KM | |
| Solid | PVC | NYLON | THWN | THHN | |||||
|
1.6 |
14 | 1x1.60 | 0.4 | 0.10 | 2.60 | 130 | 35 | 35 | 22.62 |
| 2.0 | 12 |
1x2.0 |
0.4 | 0.10 | 3.00 | 110 | 40 | 40 | 33.57 |
| 2.6 | 10 | 1x2.6 | 0.5 | 0.10 | 3.80 | 120 | 55 | 55 | 55.78 |
| 3.2 | 8 |
1x3.2 |
0.8 | 0.13 | 5.06 | 120 | 75 | 75 | 88.33 |
| Stranded | |||||||||
| 2.0 | 14/7 | 7x0.60 | 0.4 | 0.10 | 2.80 | 130 | 30 | 35 | 23.51 |
| 3.5 | 12/7 | 7x0.80 | 0.4 | 0.10 | 3.40 | 110 | 35 | 40 | 39.12 |
| 5.5 | 10/7 | 7x1.00 | 0.5 | 0.10 | 4.20 | 120 | 50 | 55 | 60.56 |
| 8.0 | 8/7 | 7x1.20 | 0.8 | 0.13 | 5.46 | 120 | 65 | 75 | 91.95 |
| 14 | 6/7 |
7x1.60 |
0.8 | 0.13 | 6.66 | 100 | 95 | 105 | 151.77 |
| 22 | 4/7 |
7x2.0 |
1.0 | 0.15 | 8.30 | 100 | 130 | 140 | 236.65 |
| 30 | 2/7 |
7x2.30 |
1.0 | 0.15 | 9.20 | 100 | 160 | 170 | 306.50 |
| 38 | 1-19 | 19x1.60 | 1.3 | 0.18 | 10.96 | 100 | 185 | 195 | 409.82 |
| 50 | 1/0-19 |
19x1.80 |
1.3 | 0.18 | 11.96 | 100 | 220 | 235 | 509.05 |
| 60 | 2/0-19 | 19x2.00 | 1.3 | 0.18 | 12.96 | 80 | 250 | 260 | 618.96 |
| 80 | 3/0-19 | 19x2.30 | 1.3 | 0.18 | 14.46 | 80 | 300 | 320 | 804.44 |
| 100 | 4/0-19 | 19x2.60 | 1.3 | 0.18 | 15.96 | 80 | 355 | 370 | 1013.94 |
| 125 | 250MCM | 37x2.10 | 1.6 | 0.18 | 18.26 | 80 | 400 | 420 | 1286.37 |
| 150 | 300MCM | 37x2.30 | 1.6 | 0.20 | 19.70 | 80 | 440 | 475 | 1542.02 |
| 350MCM | 37x2.47 | 1.6 | 0.20 | 20.90 | 80 | 505 | 570 | 1783.07 | |
| 200 | 400MCM |
37x2.60 |
1.6 | 0.20 | 21.80 | 60 | 540 | 570 | 1946.72 |
| 500MCM | 37x2.95 | 1.6 | 0.20 | 24.25 | 60 | 620 | 655 | 2486.02 | |
| 250 | 500MCM | 61x2.30 | 1.6 | 0.20 | 24.30 | 60 | 620 | 655 | 2437.34 |
| 600MCM | 61x2.52 | 1.8 | 0.23 | 26.76 | 60 | 690 | 715 | 2995.93 | |
| 325 | 650MCM | 61x2.60 | 1.8 | 0.23 | 27.46 | 60 | 720 | 770 | 3191.58 |
| 750MCM | 61x2.82 | 1.8 | 0.23 | 29.36 | 60 | 785 | 845 | 3719.63 | |
| 400 | 800MCM | 61x2.90 | 1.8 | 0.23 | 30.16 | 60 | 810 | 875 | 3927.55 |
| 500 | 1000MCM | 61x3.20 | 1.8 | 0.23 | 32.86 | 60 | 930 | 995 | 4750.91 |
Certification
UL 83 & Philippine BPS certified for industrial-grade power wiring and official permit approval.

Environmental Resistance
EMI Shielding Performance
Flame Retardant Performance
UL Certificated


APPLICATIONS
Cable Tray & Raceway Systems, Conduit Wiring, Service Entrance Wiring, Branch Circuit Wiring, Underground Conduit Installation. This wire fits all common indoor and buried power distribution layouts.

Feeder Circuit Wiring
Main building feeder circuits for distributing power to multiple workshop zones and subpanels.

Conduit Wiring
Reinforced jacket survives heavy pulling for industrial vertical riser conduit systems.

Cable Tray & Raceway Systems
Thermally stable for densely bundled industrial tray main trunk wiring.

Underground Conduit Installation
Superior moisture resistance for long buried industrial conduit runs.
Customer Photos
Industrial project photos include factory tray trunk lines, vertical conduit risers, industrial feeder wiring and heavy equipment power connection cases.

plant equipment
Main power feeder for medium production lines, compressors and industrial machinery.






Packaging Information
Standard 500 FT industrial-grade spool packing, export carton packaging with custom options available.

Plastic Reel

Small Wooden Reel

Large Wooden Reel
Global Certification
UL 83 global testing certification plus Philippine BPS compliance ensures full industrial project validity.

VDE

UL

SAA

TUV

ISO
