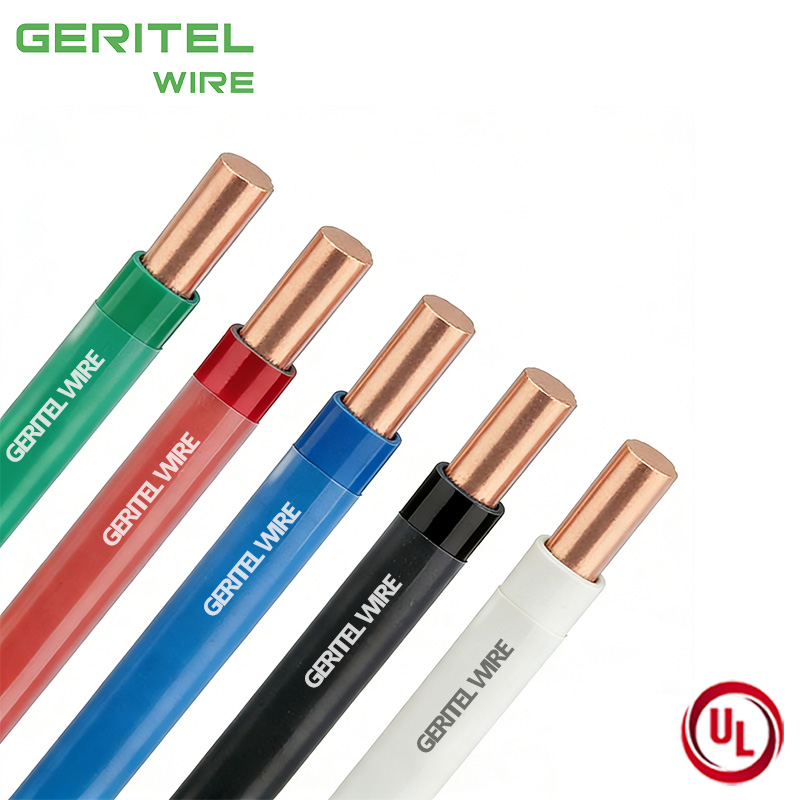

Heavy Commercial 8.0mm Copper THHN/THWN-2 Wire UL 83 Philippine BPS Compliant
Conductor :
Pure Copper
Insulation:
PVC
Jacket:
Nylon
Rated Voltage:
600V
Standard:
UL83
Description
Download


Conductor
Pure Copper

Insulation and Sheath
PVC & NYLON

No. of Conductor
single core

Temperature Rating
90°C(wet) & 90℃(dry)
8.0mm BPS-Certified THHN/THWN-2 Wire For Heavy-Duty Feeder & Main Circuit Wiring
8.0mm large-size stranded copper wire is designed as premium heavy duty THHN feeder wire Philippines for heavy commercial main feeders, high-power branch circuits and multi-story building feeder systems. It excels in THHN wire for underground conduit installation and fully complies with Philippine standard THHN trunk wire specifications, meeting BPS and UL standards.

THHN/THWN-2 Cable
THHN/THWN‑2 cables under the Philippines Standard are synonymous with quality and safety, backed by rigorous testing and compliance with international and local norms. They are the go‑to choice for engineers and contractors who demand performance and longevity in every installation.

Copper Conductors

Rated Voltage Uo/U (Um) : 600V

Insulated & Jacket:PVC &NYLON

Standards
UL83

Temperature range
90°C (wet)
90℃ (dry)
Advantages of 8.0 mm² Copper THHN/THWN‑2 Wire
Oversized copper cross-section supports peak heavy commercial loads. Dual wet/dry rating allows continuous wiring from indoor trays to underground conduits without splicing.

| Size of Conductor | No. & Nominal Diameter of Wire | Wall Thickness |
Approxi mate Overall Diameter |
Minimum Insulation Resistance |
Ampacity | Cable Nominal Weight | |||
| MM | Approxi mate AWG |
MM | MM | MM | M-Ohm-Km | 70℃ Wet |
90℃ Dry |
KG/KM | |
| Solid | PVC | NYLON | THWN | THHN | |||||
|
1.6 |
14 | 1x1.60 | 0.4 | 0.10 | 2.60 | 130 | 35 | 35 | 22.62 |
| 2.0 | 12 |
1x2.0 |
0.4 | 0.10 | 3.00 | 110 | 40 | 40 | 33.57 |
| 2.6 | 10 | 1x2.6 | 0.5 | 0.10 | 3.80 | 120 | 55 | 55 | 55.78 |
| 3.2 | 8 |
1x3.2 |
0.8 | 0.13 | 5.06 | 120 | 75 | 75 | 88.33 |
| Stranded | |||||||||
| 2.0 | 14/7 | 7x0.60 | 0.4 | 0.10 | 2.80 | 130 | 30 | 35 | 23.51 |
| 3.5 | 12/7 | 7x0.80 | 0.4 | 0.10 | 3.40 | 110 | 35 | 40 | 39.12 |
| 5.5 | 10/7 | 7x1.00 | 0.5 | 0.10 | 4.20 | 120 | 50 | 55 | 60.56 |
| 8.0 | 8/7 | 7x1.20 | 0.8 | 0.13 | 5.46 | 120 | 65 | 75 | 91.95 |
| 14 | 6/7 |
7x1.60 |
0.8 | 0.13 | 6.66 | 100 | 95 | 105 | 151.77 |
| 22 | 4/7 |
7x2.0 |
1.0 | 0.15 | 8.30 | 100 | 130 | 140 | 236.65 |
| 30 | 2/7 |
7x2.30 |
1.0 | 0.15 | 9.20 | 100 | 160 | 170 | 306.50 |
| 38 | 1-19 | 19x1.60 | 1.3 | 0.18 | 10.96 | 100 | 185 | 195 | 409.82 |
| 50 | 1/0-19 |
19x1.80 |
1.3 | 0.18 | 11.96 | 100 | 220 | 235 | 509.05 |
| 60 | 2/0-19 | 19x2.00 | 1.3 | 0.18 | 12.96 | 80 | 250 | 260 | 618.96 |
| 80 | 3/0-19 | 19x2.30 | 1.3 | 0.18 | 14.46 | 80 | 300 | 320 | 804.44 |
| 100 | 4/0-19 | 19x2.60 | 1.3 | 0.18 | 15.96 | 80 | 355 | 370 | 1013.94 |
| 125 | 250MCM | 37x2.10 | 1.6 | 0.18 | 18.26 | 80 | 400 | 420 | 1286.37 |
| 150 | 300MCM | 37x2.30 | 1.6 | 0.20 | 19.70 | 80 | 440 | 475 | 1542.02 |
| 350MCM | 37x2.47 | 1.6 | 0.20 | 20.90 | 80 | 505 | 570 | 1783.07 | |
| 200 | 400MCM |
37x2.60 |
1.6 | 0.20 | 21.80 | 60 | 540 | 570 | 1946.72 |
| 500MCM | 37x2.95 | 1.6 | 0.20 | 24.25 | 60 | 620 | 655 | 2486.02 | |
| 250 | 500MCM | 61x2.30 | 1.6 | 0.20 | 24.30 | 60 | 620 | 655 | 2437.34 |
| 600MCM | 61x2.52 | 1.8 | 0.23 | 26.76 | 60 | 690 | 715 | 2995.93 | |
| 325 | 650MCM | 61x2.60 | 1.8 | 0.23 | 27.46 | 60 | 720 | 770 | 3191.58 |
| 750MCM | 61x2.82 | 1.8 | 0.23 | 29.36 | 60 | 785 | 845 | 3719.63 | |
| 400 | 800MCM | 61x2.90 | 1.8 | 0.23 | 30.16 | 60 | 810 | 875 | 3927.55 |
| 500 | 1000MCM | 61x3.20 | 1.8 | 0.23 | 32.86 | 60 | 930 | 995 | 4750.91 |
Certification
UL 83 & Philippine BPS certified for heavy-duty commercial main circuit and feeder wiring approval.

Environmental Resistance
EMI Shielding Performance
Flame Retardant Performance
UL Certificated


APPLICATIONS
Cable Tray & Raceway Systems, Conduit Wiring, Service Entrance Wiring, Branch Circuit Wiring, Underground Conduit Installation. This wire fits all common indoor and buried power distribution layouts.

Feeder Circuit Wiring
Primary main feeder circuits for high-rise buildings and large commercial zone power distribution.

Service Entrance Wiring
Heavy-load service entrance power supply for large commercial complexes.

Cable Tray & Raceway Systems
Main trunk wiring for large malls and commercial building cable tray systems.

Underground Conduit Installation
Stable wet-rated performance for long buried conduit runs under commercial premises.
Customer Photos
High-rise and commercial project photos include large tray trunk wiring, vertical riser conduits, main feeder panel wiring and bulk container shipments.

plant equipment
Main power supply for heavy factory machinery and full production line equipment.






Packaging Information
Standard 500 FT heavy-duty spool packing, export carton packaging with OEM customization available.

Plastic Reel

Small Wooden Reel

Large Wooden Reel
Global Certification
UL 83 international certification and Philippine BPS standard approval for heavy commercial project acceptance.

VDE

UL

SAA

TUV

ISO
