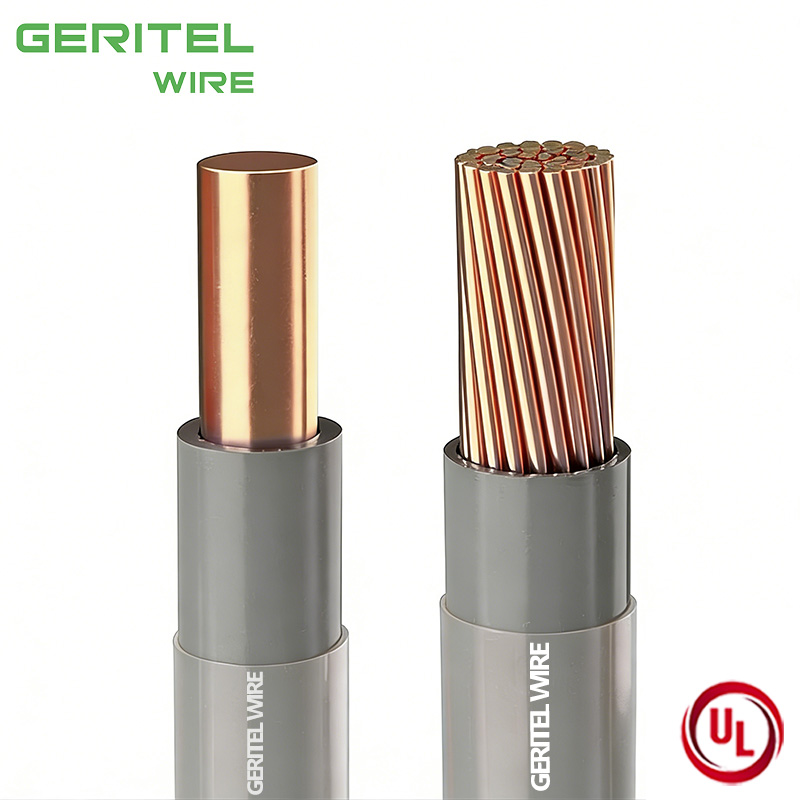

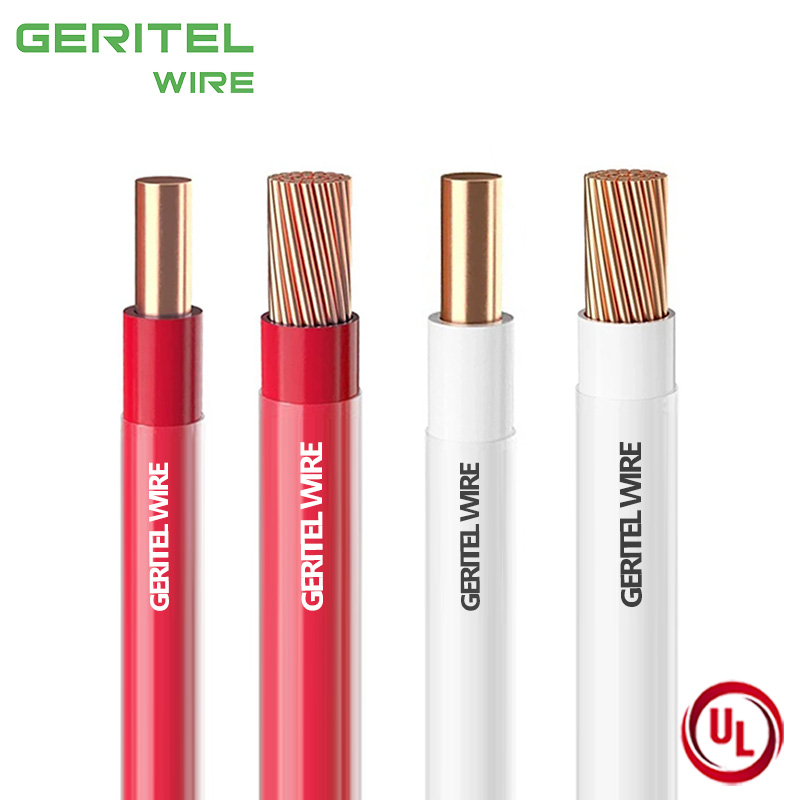

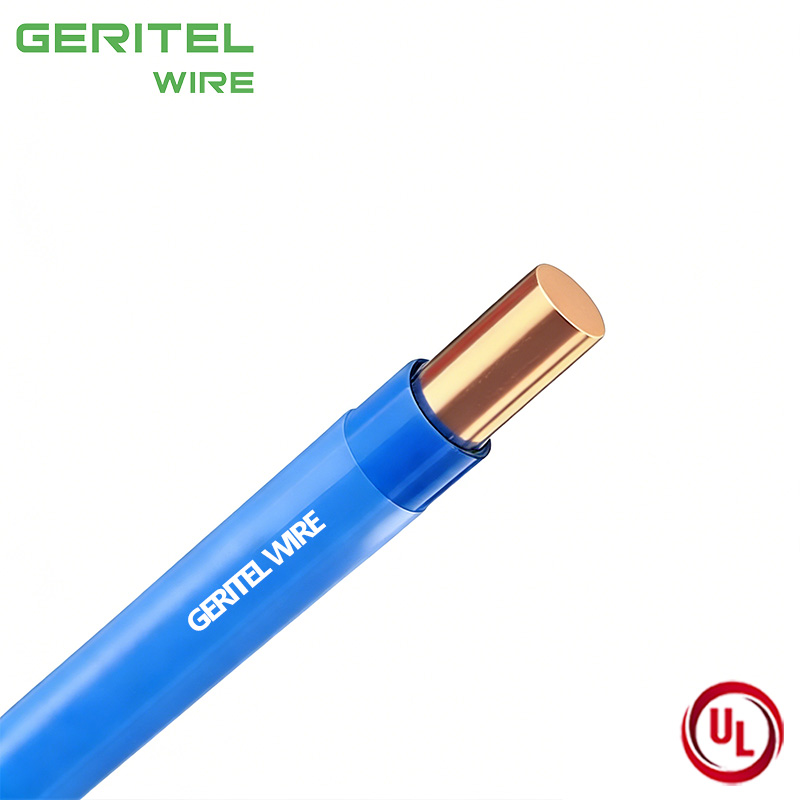

UL83 Certified 200 mm² Copper THHN/THWN‑2 Wire – Ideal for Feeders and Service Entrances
Conductor :
Pure Copper
Insulation:
PVC
Jacket:
Nylon
Rated Voltage:
600V
Standard:
UL83
Description
Download


Conductor
Pure Copper

Insulation and Sheath
PVC & NYLON

No. of Conductor
single core

Temperature Rating
90°C(wet) & 90℃(dry)
200 mm² Copper THHN/THWN‑2 Wire –High‑Ampacity Distribution Workhorse
This 200 mm² stranded copper THHN/THWN‑2 wire comes with premium PVC insulation and a durable nylon overcoat, rated 600V and UL 83 certified to Philippine standards. Its generous cross‑section significantly cuts line losses, making it a top candidate for main feeders and service drops in large commercial complexes and industrial plants.

THHN/THWN-2 Cable
The Philippines Standard THHN/THWN‑2 series is renowned for its superior thermal endurance and mechanical strength, ensuring safe operation indoors, outdoors, and in wet conditions. These wires are fully compliant with PEC, offering engineers and contractors dependable performance over decades of service.

Copper Conductors

Rated Voltage Uo/U (Um) : 600V

Insulated & Jacket:PVC &NYLON

Standards
UL83

Temperature range
90°C (wet)
90℃ (dry)
Advantages of 200 mm² Copper THHN/THWN‑2 Wire
The 200 mm² size offers exceptional ampacity, allowing it to carry heavy loads without overheating even in high‑ambient‑temperature environments. Its nylon jacket resists chemical attack, and the stranded core provides excellent flexibility for termination in large lugs and breaker terminals.

| Size of Conductor | No. & Nominal Diameter of Wire | Wall Thickness |
Approxi mate Overall Diameter |
Minimum Insulation Resistance |
Ampacity | Cable Nominal Weight | |||
| MM | Approxi mate AWG |
MM | MM | MM | M-Ohm-Km | 70℃ Wet |
90℃ Dry |
KG/KM | |
| Solid | PVC | NYLON | THWN | THHN | |||||
|
1.6 |
14 | 1x1.60 | 0.4 | 0.10 | 2.60 | 130 | 35 | 35 | 22.62 |
| 2.0 | 12 |
1x2.0 |
0.4 | 0.10 | 3.00 | 110 | 40 | 40 | 33.57 |
| 2.6 | 10 | 1x2.6 | 0.5 | 0.10 | 3.80 | 120 | 55 | 55 | 55.78 |
| 3.2 | 8 |
1x3.2 |
0.8 | 0.13 | 5.06 | 120 | 75 | 75 | 88.33 |
| Stranded | |||||||||
| 2.0 | 14/7 | 7x0.60 | 0.4 | 0.10 | 2.80 | 130 | 30 | 35 | 23.51 |
| 3.5 | 12/7 | 7x0.80 | 0.4 | 0.10 | 3.40 | 110 | 35 | 40 | 39.12 |
| 5.5 | 10/7 | 7x1.00 | 0.5 | 0.10 | 4.20 | 120 | 50 | 55 | 60.56 |
| 8.0 | 8/7 | 7x1.20 | 0.8 | 0.13 | 5.46 | 120 | 65 | 75 | 91.95 |
| 14 | 6/7 |
7x1.60 |
0.8 | 0.13 | 6.66 | 100 | 95 | 105 | 151.77 |
| 22 | 4/7 |
7x2.0 |
1.0 | 0.15 | 8.30 | 100 | 130 | 140 | 236.65 |
| 30 | 2/7 |
7x2.30 |
1.0 | 0.15 | 9.20 | 100 | 160 | 170 | 306.50 |
| 38 | 1-19 | 19x1.60 | 1.3 | 0.18 | 10.96 | 100 | 185 | 195 | 409.82 |
| 50 | 1/0-19 |
19x1.80 |
1.3 | 0.18 | 11.96 | 100 | 220 | 235 | 509.05 |
| 60 | 2/0-19 | 19x2.00 | 1.3 | 0.18 | 12.96 | 80 | 250 | 260 | 618.96 |
| 80 | 3/0-19 | 19x2.30 | 1.3 | 0.18 | 14.46 | 80 | 300 | 320 | 804.44 |
| 100 | 4/0-19 | 19x2.60 | 1.3 | 0.18 | 15.96 | 80 | 355 | 370 | 1013.94 |
| 125 | 250MCM | 37x2.10 | 1.6 | 0.18 | 18.26 | 80 | 400 | 420 | 1286.37 |
| 150 | 300MCM | 37x2.30 | 1.6 | 0.20 | 19.70 | 80 | 440 | 475 | 1542.02 |
| 350MCM | 37x2.47 | 1.6 | 0.20 | 20.90 | 80 | 505 | 570 | 1783.07 | |
| 200 | 400MCM |
37x2.60 |
1.6 | 0.20 | 21.80 | 60 | 540 | 570 | 1946.72 |
| 500MCM | 37x2.95 | 1.6 | 0.20 | 24.25 | 60 | 620 | 655 | 2486.02 | |
| 250 | 500MCM | 61x2.30 | 1.6 | 0.20 | 24.30 | 60 | 620 | 655 | 2437.34 |
| 600MCM | 61x2.52 | 1.8 | 0.23 | 26.76 | 60 | 690 | 715 | 2995.93 | |
| 325 | 650MCM | 61x2.60 | 1.8 | 0.23 | 27.46 | 60 | 720 | 770 | 3191.58 |
| 750MCM | 61x2.82 | 1.8 | 0.23 | 29.36 | 60 | 785 | 845 | 3719.63 | |
| 400 | 800MCM | 61x2.90 | 1.8 | 0.23 | 30.16 | 60 | 810 | 875 | 3927.55 |
| 500 | 1000MCM | 61x3.20 | 1.8 | 0.23 | 32.86 | 60 | 930 | 995 | 4750.91 |
Certification
UL 83 certified; meets Philippines Standard (PNS) and Philippine Electrical Code (PEC). Approved for cable tray use, MTW applications, and wet locations.

Environmental Resistance
EMI Shielding Performance
Flame Retardant Performance
UL Certificated


APPLICATIONS
For industrial building, warehouse, HVAC, pump, motor, data center and retail power distribution, plus branch circuits, cable trays, conduits, feeders, service entrances and underground wiring.

Branch Circuit Wiring
For large motors in water treatment plants, this wire delivers steady current, reducing motor overheating and unplanned downtime.

Conduit Wiring
Pulled through rigid steel conduits in high‑rise buildings, its smooth jacket enables long pulls through multiple bends without damage.

Service Entrance Wiring
As the primary service conductor for hospitals, it ensures reliable power for life‑support equipment during peak load hours.

Underground Conduit Installation
Buried in PVC ducts beneath roadways, its moisture‑blocking insulation prevents water ingress, guaranteeing power to remote gates and pumps.
Customer Photos
On-site installation photos for conduit, cable tray and service entrance wiring worldwide.

plant equipment
Full-automatic stranding and jacketing machines, strict size and performance inspection.






Packaging Information
Moisture-proof plastic coil and export wooden reel packing for long-distance shipment.

Plastic Reel

Small Wooden Reel

Large Wooden Reel
Global Certification
Complete official test certificates, support customs clearance and global project bidding.
