Best Practices for Routing Orange Power Cables in Buildings

Proper routing of orange power cables in buildings is essential to ensure electrical safety, system efficiency, and long-term reliability. Whether in HVAC systems, commercial buildings, or industrial facilities, following best practices helps reduce installation errors, improve maintenance, and ensure compliance with safety standards.
1. Understanding Orange Power Cables

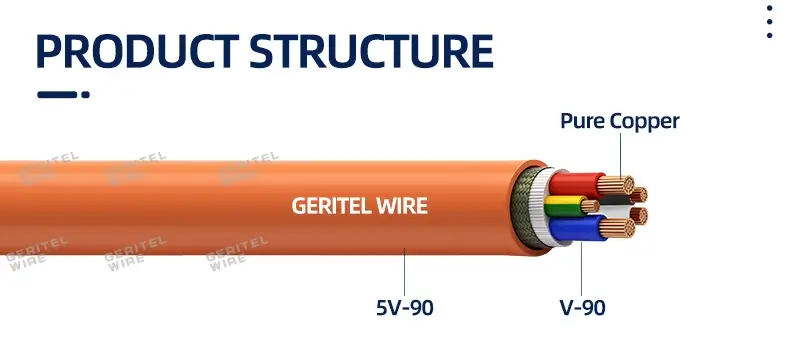

Orange power cables, especially AS/NZS 5000.1(e.g.0.6/1kv orange cable) and 5000.2(e.g 450/750V orange cable )orange circular cables, are widely used in Australian electrical systems. Their distinctive color improves visibility, making identification easier during installation and maintenance.
These cables are typically SAA certified, ensuring they meet strict Australian requirements for insulation, fire resistance, and durability in building environments.

2. Planning Cable Routing Layout
Effective routing starts with proper planning:
• Design clear cable pathways before installation
• Separate power cables from data and communication lines to avoid interference
• Minimize cable length to reduce voltage drop and energy loss
• Allow sufficient space for future expansion and maintenance
Good planning ensures efficient installation and long-term system performance.
3. Installation Methods and Support Systems
Choosing the right routing method is key:
• Use cable trays, conduits, or trunking systems for organized and protected routing
• Secure cables properly to prevent movement or mechanical stress
• Maintain proper spacing between cables to avoid overheating
• Avoid sharp bends and follow recommended bending radius
Proper support systems help maintain cable integrity and safety.

4. Safety and Environmental Considerations
Building environments require special attention to safety:
• Use fire-resistant or low-smoke cables in high-occupancy areas
• Avoid routing cables near heat sources or areas with high moisture
• Protect cables from physical damage during and after installation
• Clearly label orange power cables for easy identification and maintenance
Using SAA certified cables ensures compliance with Australian building and electrical standards.

5. Conclusion
Following best practices for routing orange power cables in buildings is essential for ensuring safe, efficient, and reliable electrical systems. From proper planning to correct installation and safety considerations, every step plays a critical role in system performance.
Dongguan GERITEL Electrical Co., Ltd. offers high-quality SAA certified AS/NZS 5000.1 and 5000.2 orange circular cables, providing dependable solutions for HVAC, commercial, and industrial building applications.
